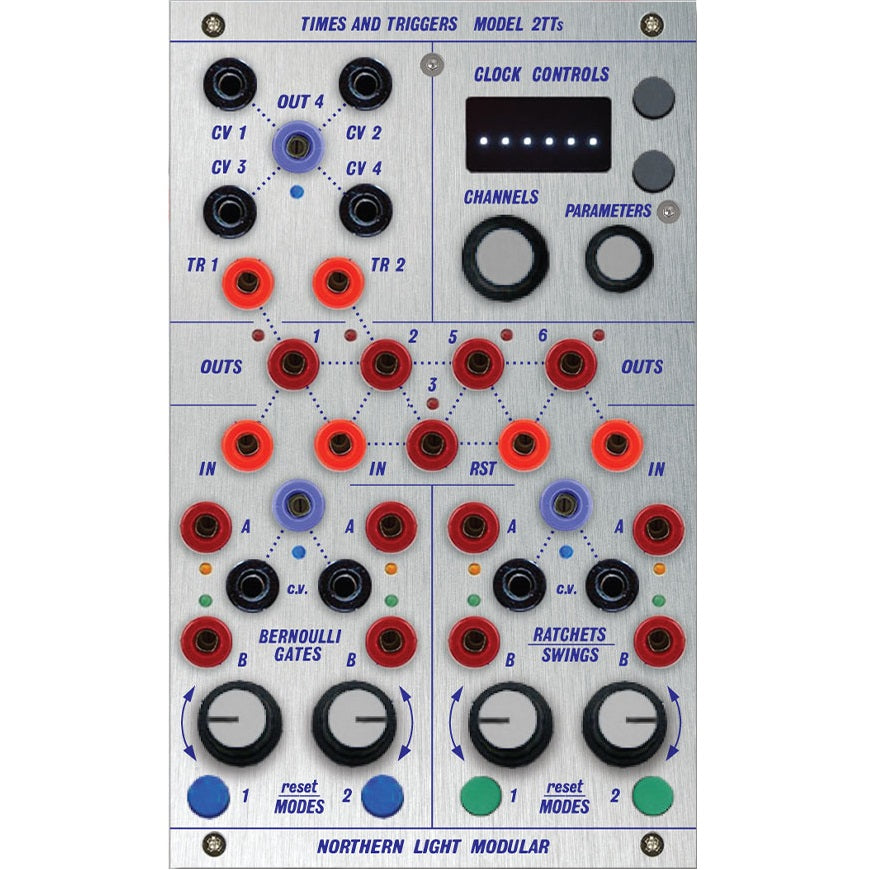

NLM - Times and Triggers – Model 2TTs [200 Series]
Multiple trigger generator with a random gates, swings and ratchets
Sometimes more is more.
We built on the existing 2TT , shuffled things around and added multiple outputs and inputs.
Based on the Temps Utile in the top and based on two independent Branches circuits , one running the Twigs firmware in the right side bottom part, the 2TTs provides six outputs of trigger pulses , clock sources and one optional sequencer or stepped random generator.
The CV output is now preset at three different locations on the board where it can be conveniently connected to one of six CV ins using shorting bars.
Furthermore the pulses can be combined using shorting bars from the 208 Music Easel providing polyrhythm generators.
The pulse length and various other parameters can be adjust , combined and saved into the module.
Four clocks can be sent using bars into either two Bernoulli Gate adjustable random coin toss sections or into a dual swing or a ratchet generator with a shared reset input
Swing, ratchet and the probability of the Bernoulli can be CV controlled by either an external source or Output 4 of the Temps Utile in DAC mode with another shorting bar.
