Name: Northern Lights Modular - HDM DogmaTrix'95
Brand: Northern Light Modular
Price: 525.00 USD
Availability: InStock

Buchla Modular [4U]

Product form

Northern Lights Modular - HDM DogmaTrix'95

Form follows functionNo lights, switches or buttons have been harmed in the construction of this. A compact 6-in/9-out mix matrix... Read more Read more

Description

Form follows function
No lights, switches or buttons have been harmed in the construction of this.

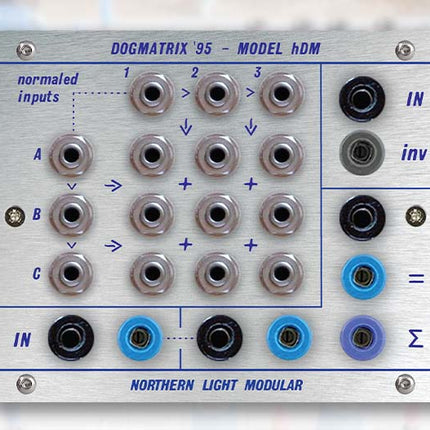

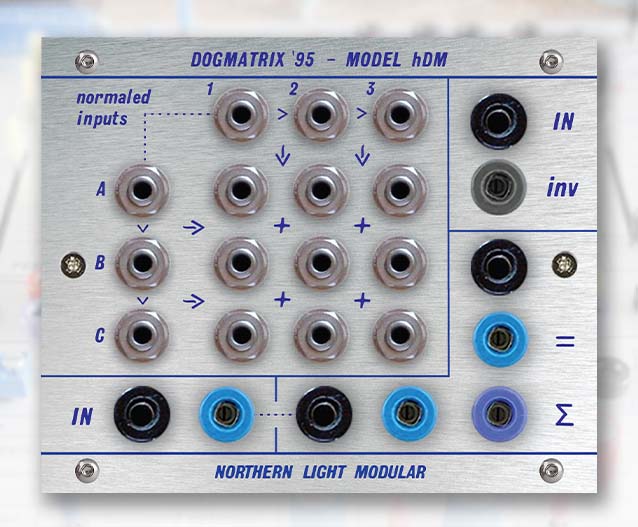

A compact 6-in/9-out mix matrix and triple buffer-inverter in h size

The CV part consists of three pitch accurate buffers where OUT equals IN.
It also sports an inverter that is tied to 10V when its inputis left unconnected.
A voltage summer of two of the inputs in the lower right corner completes the CV section.

In the audio section we implemented 6 inputs in two 2 groups that are normaled.
Inputs A(1) gets copied to B(2) and C(3) as long as they are left open.
The signals are then buffered and presented as 1to1 copies on the outputs in the same row or column.
On cross sections the two inputs will be mixed together in equal intensity/
9 outputs are available to produce all sorts of combined audio signals.
Outputs can be wired back into inputs to allow even more mixing and summing tricks.

The h series modules require a h bracket to be mounted in a 1U space

$525.00Excl. VAT
