Description

New Old Stock - Red finish

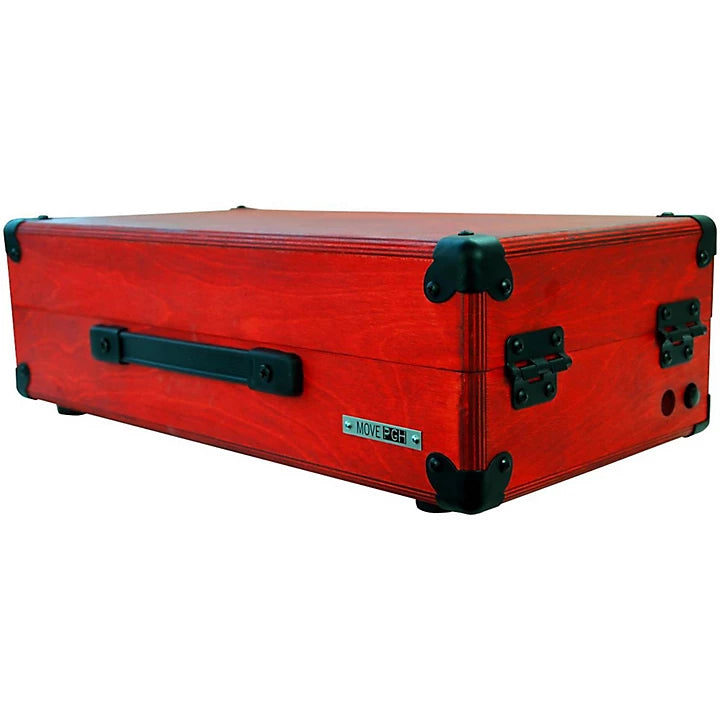

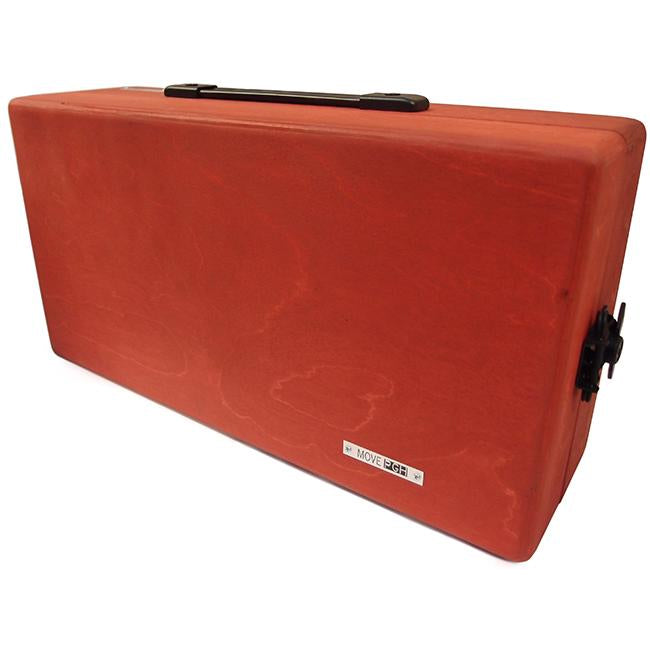

the pittsburgh modular move 208 is a fully featured, roadworthy eurorack case and power supply designed to safely house and power up to 208hp of eurorack modules. the move 208 case includes a removable lid. when attached, the lid fits over the patch cables allowing a fully patched modular to hit the road. a complete set of nickel plated steel corners is also included. the corners ship unattached with screws allowing the owner to easily install the corners if desired.

specifications:
width: 528.5mm (104hp)
number of rows: 2
available depth for modules: 70mm
available depth for modules (above power supply): 62mm
20 sliding square nuts per rail supports up to 40 modules
80 (4-40 size) panel screws included
guitar amp style strap handle
side mounted secure twist latch

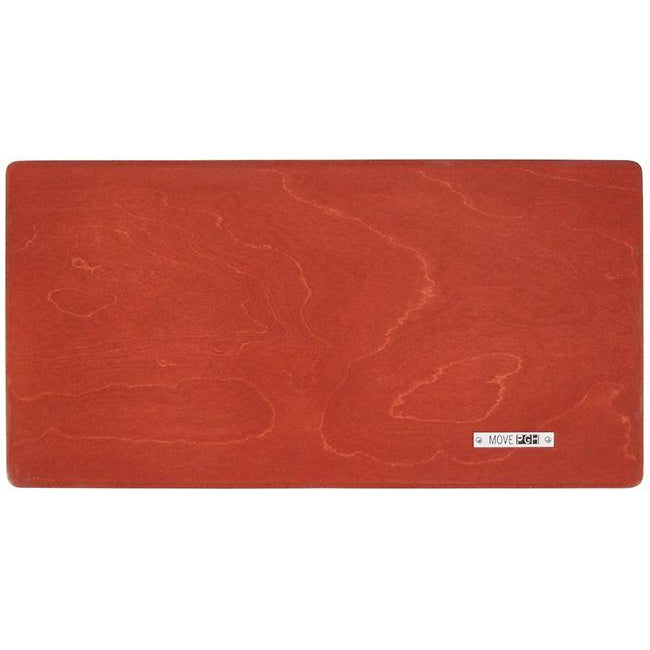

removable lid
8 nickel plated steel corners and necessary screws included
durable textured coating
side mounted on/off switch
powered bus board supplies +12v / -12v / +5v

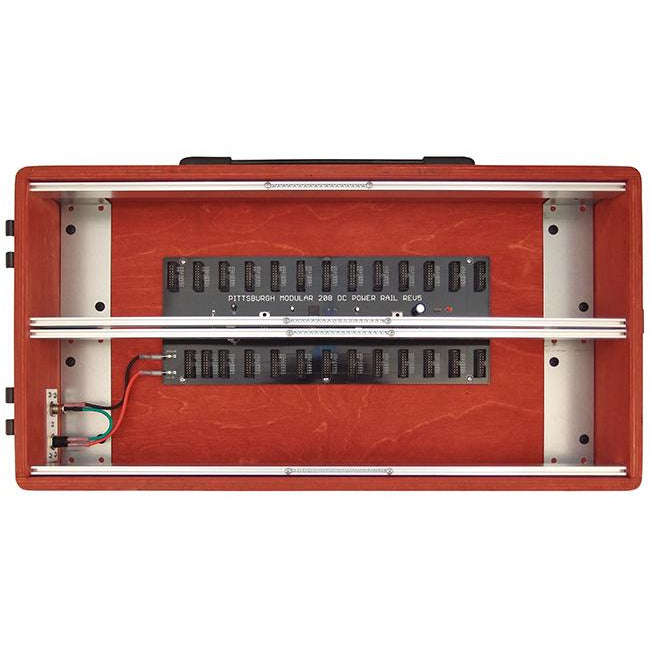

dual custom powered bus boards with 32 keyed headers
eurorack bus compatible bus boards
side mounted 2.1mm universal power adapter jack
12vac 5.0a ac power adapter

power supply:
total power output: +12v @ 2a, -12v @ 2a, and +5v @600ma
dual bus boards deliver power for up to 32 modules using standard 16 pin, keyed power headers.
the power supplies use a single external 12vac 5.0a ac barrel jack power adapter.

dimensions:
external width including latch and hinges: 597mm
external depth including handle: 296mm
height (including feet & lid) 178mm
height (including feet) 103mm
minimum depth available for modules: 61mm
maximum depth available for modules: 74mm
