Analogue Systems - RS-110

  • HP:

Related Items:NOTE: Analogue Systems is now plug and play! This is a Dual Buss Module that fits into any AS... Read more Read more

$241.00Excl. VAT

      Description

      Related Items:
      NOTE: Analogue Systems is now plug and play! This is a Dual Buss Module that fits into any AS case as well as any case that accepts a Doepfer style header connector. Most cases in Euro Land accept Doepfer style connections.

      Manufacturer Description:

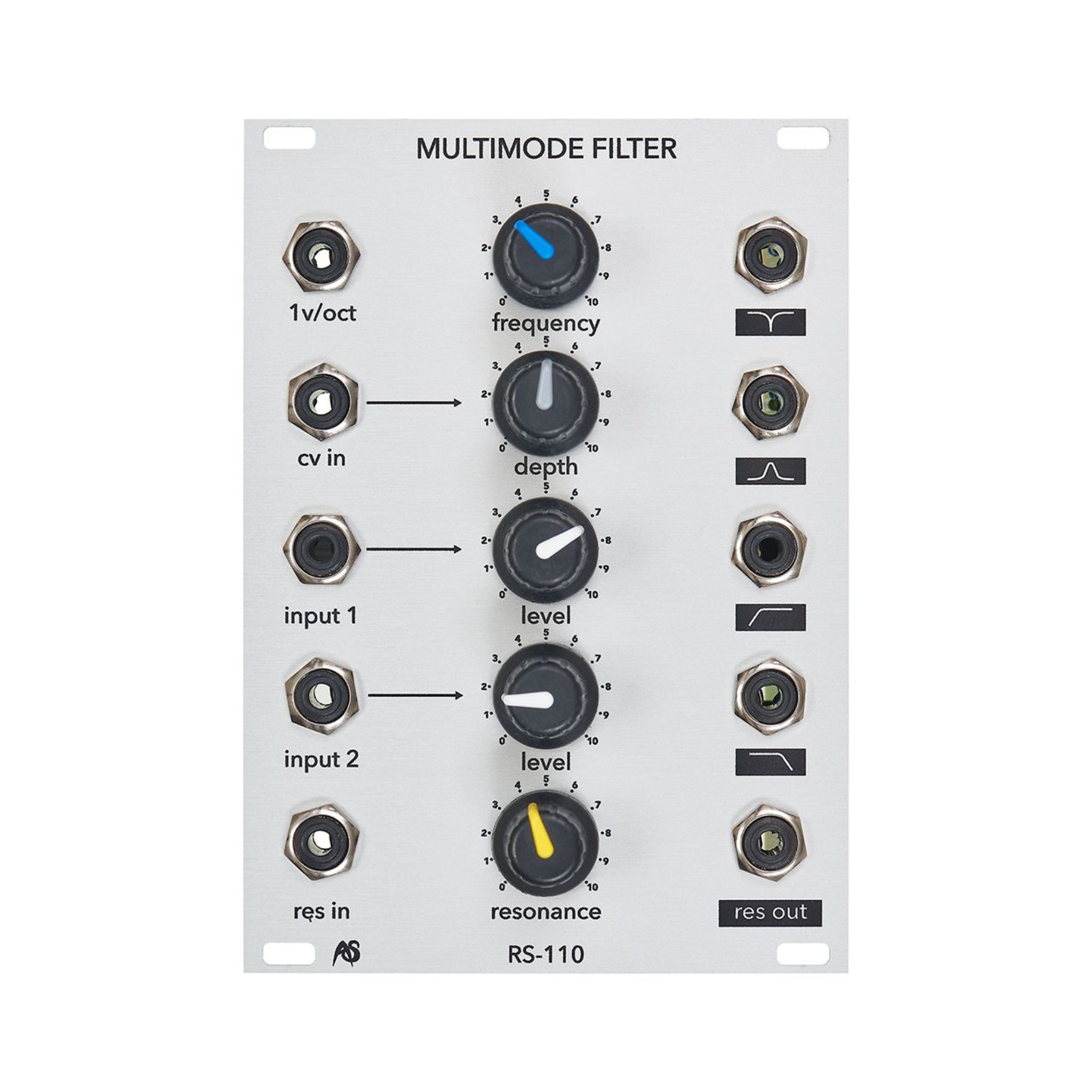

      The RS-110 consists of a two channel audio mixer followed by four, parallel, resonant filters with voltage controlled frequency and a unique "insert" point in the feedback path that generates and controls resonance.

      The RS-110 offers four filter modes. These are 24dB/oct low-pass, 24dB/oct high-pass, 12dB/oct band-pass and 12dB/oct band reject (often called 'notch') filtering, with the cutoff frequencies (Fc) of the high-pass and low-pass outputs being the centre frequencies of the band-pass and notch outputs.

      There is no switch to select between the modes because all four are available simultaneously from the appropriate output sockets. However, the cut-off and resonance can not be defined individually for each, and the controls act upon each mode equally.

      Specifications:
      18 hp
      2.5 inches Depth
      70 mA ±12V
