Description

FM & VECTOR SYNTHESIS - TWO ICONS OF THE '80S IN ONE UNIT

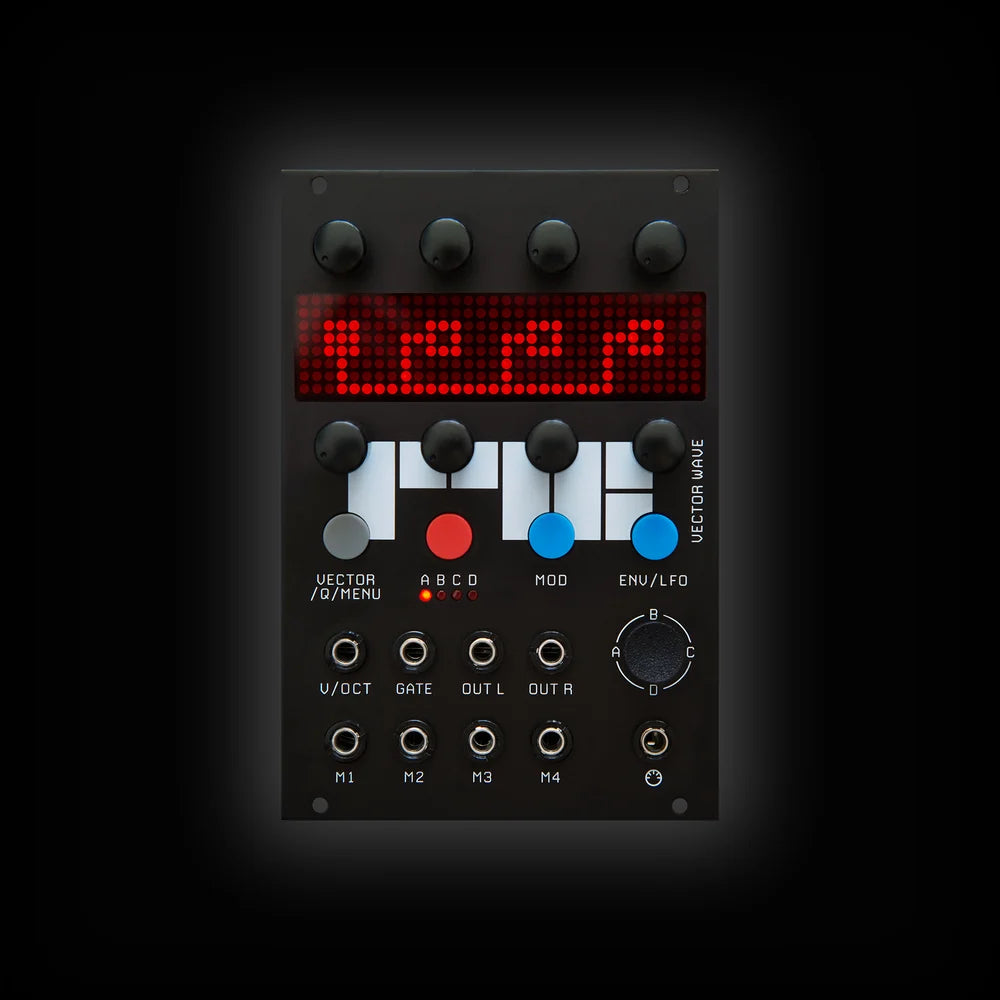

Introducing VECTOR WAVE from RYK Modular bringing together the awesome power of 16 oscillator FM, combined with Vector synthesis OR true multi voice polyphony.

The Vector Wave is a feature packed compact Eurorack module, which can be used as a stand alone synth-voice without the need for external VCA,ENV, LFOs etc

FEATURES-

16 oscillators, divided into 4 banks, oscillators can freely configured into series or parallel combinations for complex FM or additive synthesis

A cute Vector Joystick for morphing between oscillator banks, for cool performance timbre sweeps and sonic movement
Vectors can be recorded from the joystick and replayed from trigger sources, or animated from external or internal modulation sources

Super cool retro Big-Pixel screen, ideal for nostalgia freaks or the visually impaired

Wave Warping brings grit and aggression to the FM synthesis with oscillators continuously variable between Sine,Tri-ish Saw, Pulse waveforms

Wave Folding for subtle to extreme sonic bending

Two Envelope generators [ per voice in polyphonic modes ], and two LFOs with all controls assignable as modulation destinations

Intuitive Modulation Slot patching from external and internal sources to be routed to any parameter within the Vector Wave

30 User Voice storage spaces for storing your synth masterpieces to internal memory, enabling you to impress your friends at a later date

Thee modes of oscillator bank allocation Monophonic Vector, and Polyphonic Voice, and Multitimbral Polyphonic

MIDI input for a spaghetti-free Polyphonic setup, velocity, aftertouch and MIDI CCs avail- able as modulation sources

Slim but handsome Expander Module also available that adds 3 more V/oct and Gate inputs, for maximum mutli-voice multitimbral melodious mayhem !
