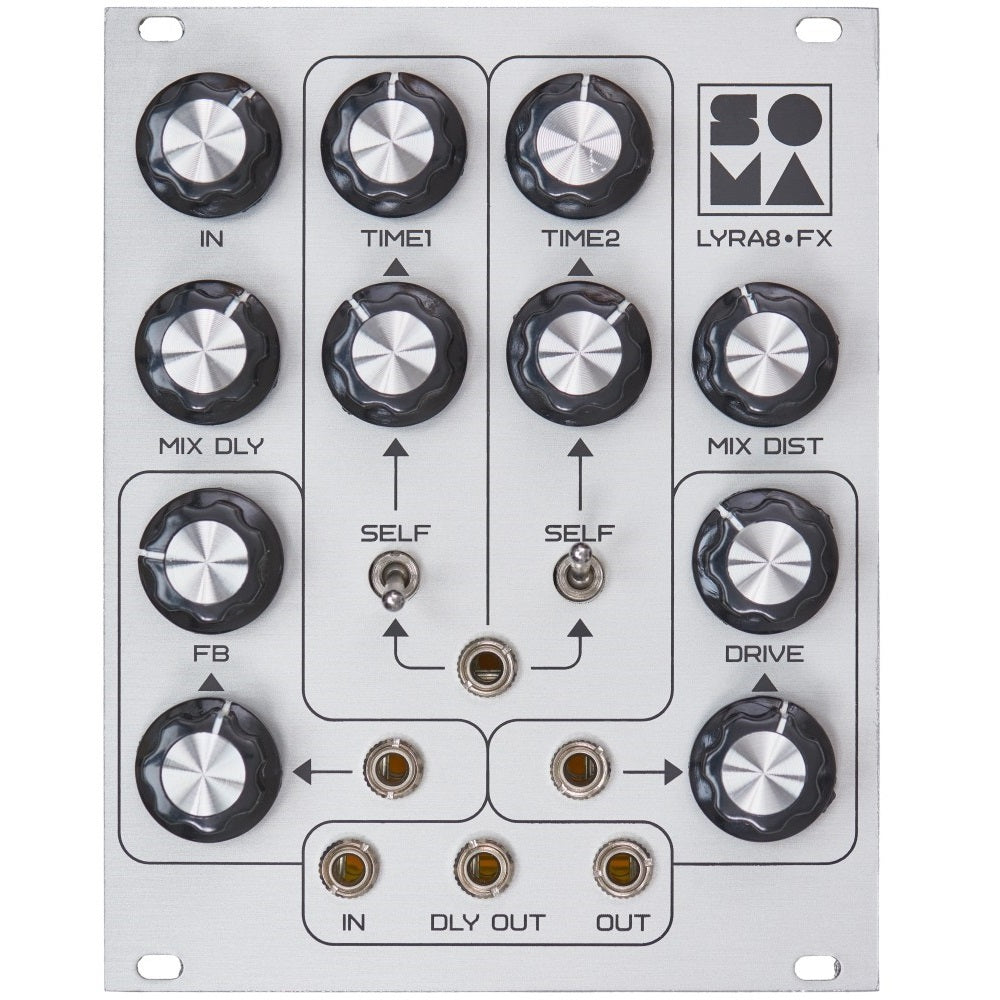

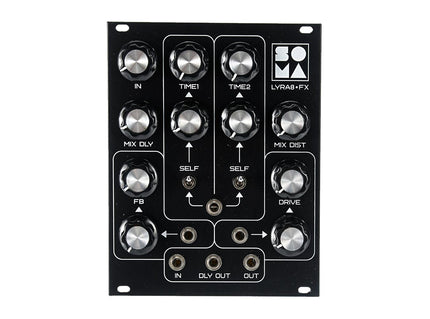

LYRA8-FX is an FX processor that can give you a significant part of the mysterious LYRA-8 sound.
LYRA8-FX consists of the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.
It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay.
It’s much more than a delay – you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.
It has a famous LYRA-8 build quality – no SMD, no twisted plastic shafts, no crappy parts.
Power connector polarity
Pots:
– IN volume
– Stage 1 delay time
– Stage 2 delay time
– Stage 1 delay time modulation depth
– Stage 2 delay time modulation depth
– Delay feedback
– Delay feedback CV amount
– Delay mix
– Distortion drive
– Distortion mix
– Distortion drive CV amount
Switches:
– Stage 1 delay time modulation source
– Stage 2 delay time modulation source
Ins:
– Audio in
– Delay time CV
– Delay feedback CV
– Distortion drive CV
Outs:
– Main audio out
– Delay only out
Dimensions:
– Width – 20HP
– Depth – 40mm
Power consumption:
+12V – 90ma
-12V – 20ma
