The 5089 FREQUENCY RESONANCE or Q circuit emphasizes those harmonics to the point of “squealy,” giddy self-oscillation, tracking the keyboard in its FULL 5089 Boomstar's Boomstar Modular filters are hand-built in the U. S. Pick-and-Place all the way.
Potentiometer Potential
Three attenuverter and four attenuation pots control the
FREQUENCY ,
RESONANCE ,
FREQ CV 1 ,
RESO CV ,
FREQ CV 2 ,
INPUT and
OUTPUT , delivering smooth, detailed, and complex expression.
Switch it Up
Classic Minimoog
FULL and
HALF strength filter frequency keyboard/voltage tracking for rounder low end with brilliant highs.
Patch it Up
Seven patch points:
1 V/O ,
FREQ CV 1 ,
FREQ CV 2 ,
RESO CV ,
INPUT and 2x
OUTPUT direct the deepest manipulation.

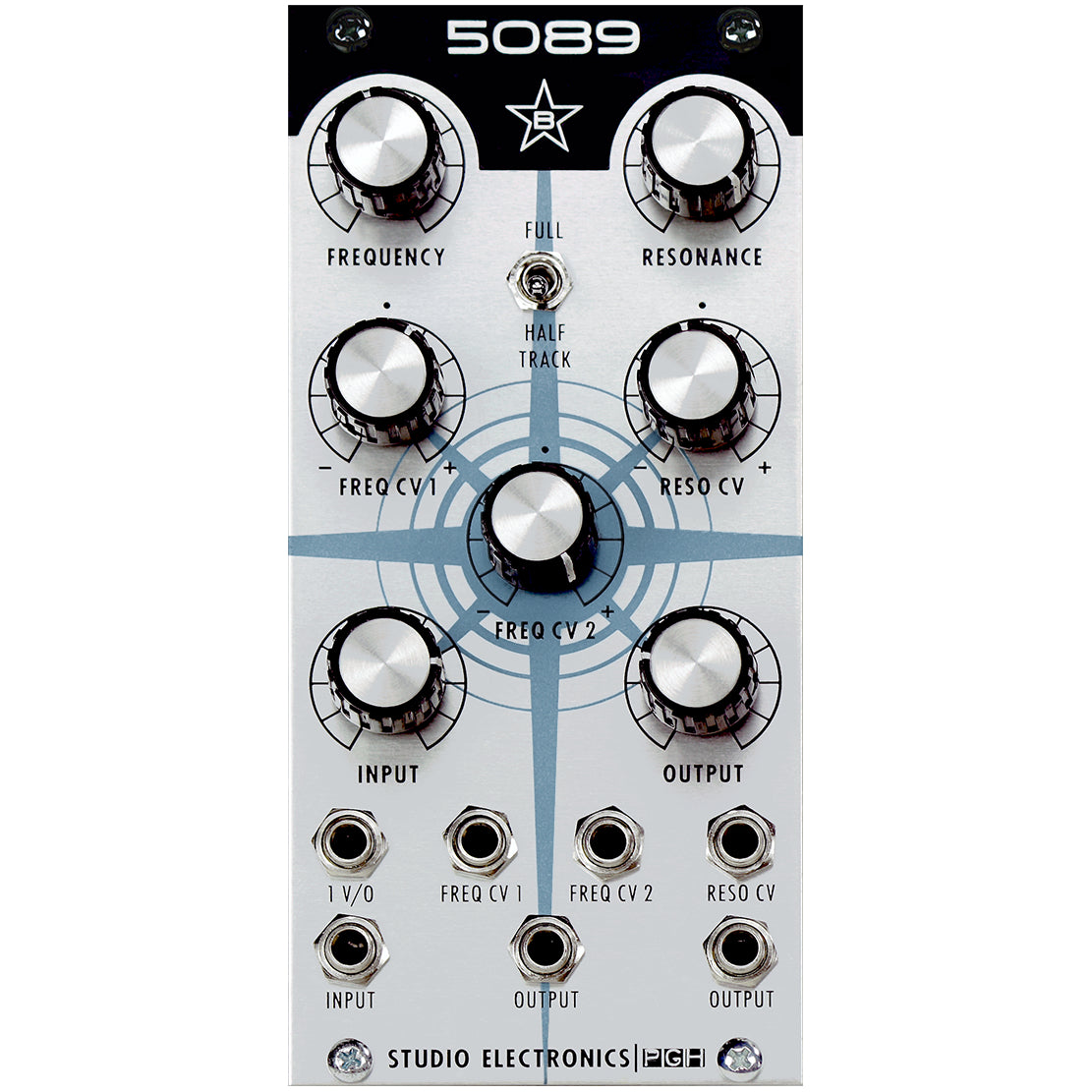

All Controls and Patch Points
FREQUENCY – Adjusts the frequency, or cut-off of the filter.
RESONANCE – Adjusts the resonance of the filter. *
FULL HALF TRACK – Switch between full and half keyboard/voltage tracking.
FREQ CV 1 – Frequency control voltage 1 input attenuverter.
RESO CV – Resonance control voltage input attenuverter.
FREQ CV 2 – Frequency control voltage 2 input attenuverter.
INPUT – Adjusts the audio input.
OUTPUT – Adjusts the audio output.
1 V/O – One volt per octave control voltage input.
FREQ CV 1 – Frequency control voltage 1 input.
FREQ CV 2 – Frequency control voltage 2 input.
RESO CV – Resonance control voltage input.
INPUT – Audio input.
OUTPUT x2 – Audio outputs.
Vitals
Size - 12hp
Depth - 39.7mm with ribbon cable attached
Power Usage - 40mA, 27mA (+12 / -12)
* From 7:00 (0) to 9:00 our “Negative Resonance Saturation” adds beefiness, boosting the waveform amplitude and taming waveform transients; set to 9:00 to achieve the cleanest tone possible.
Brand New Old Stock
