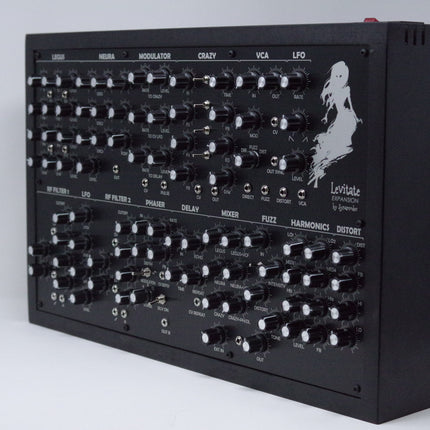

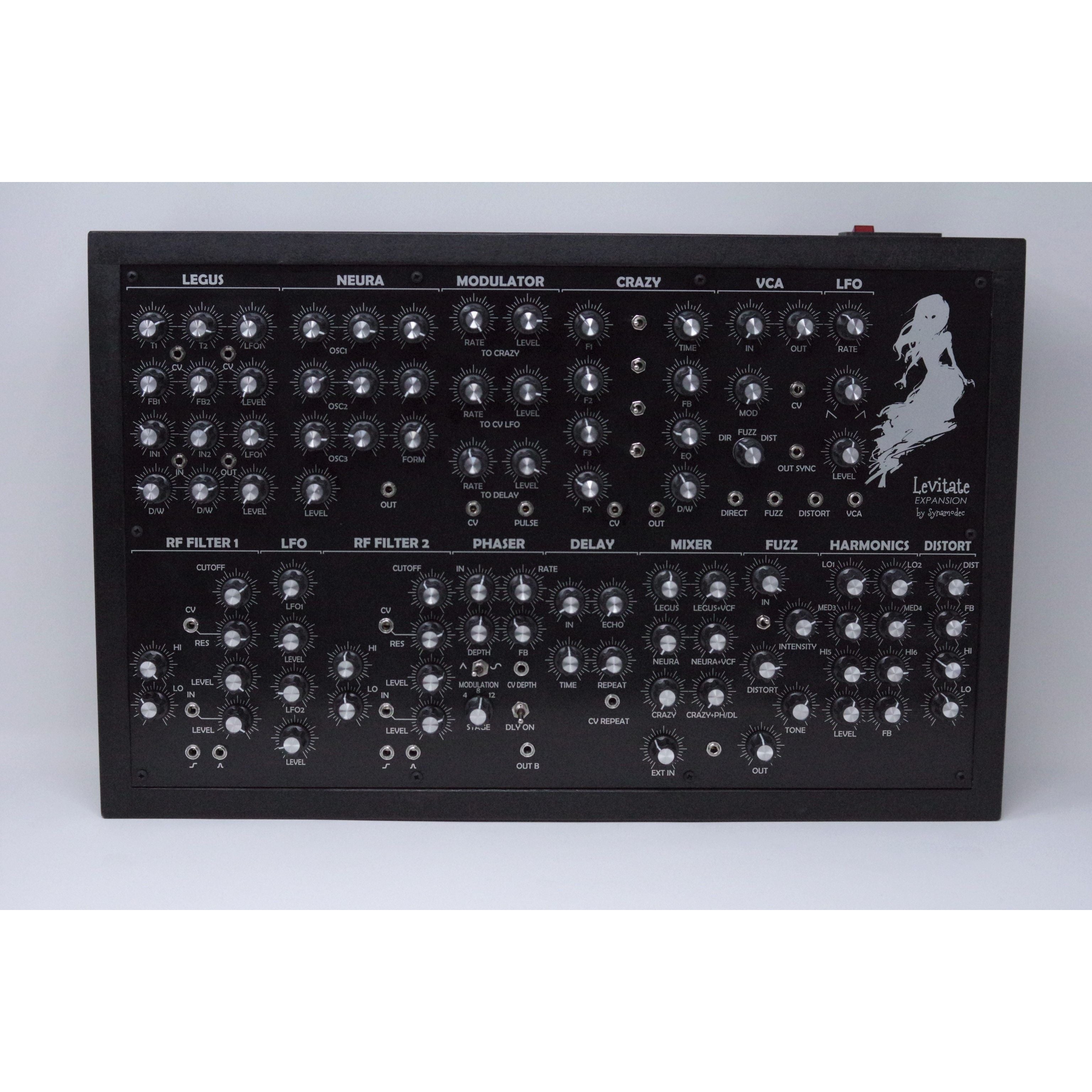

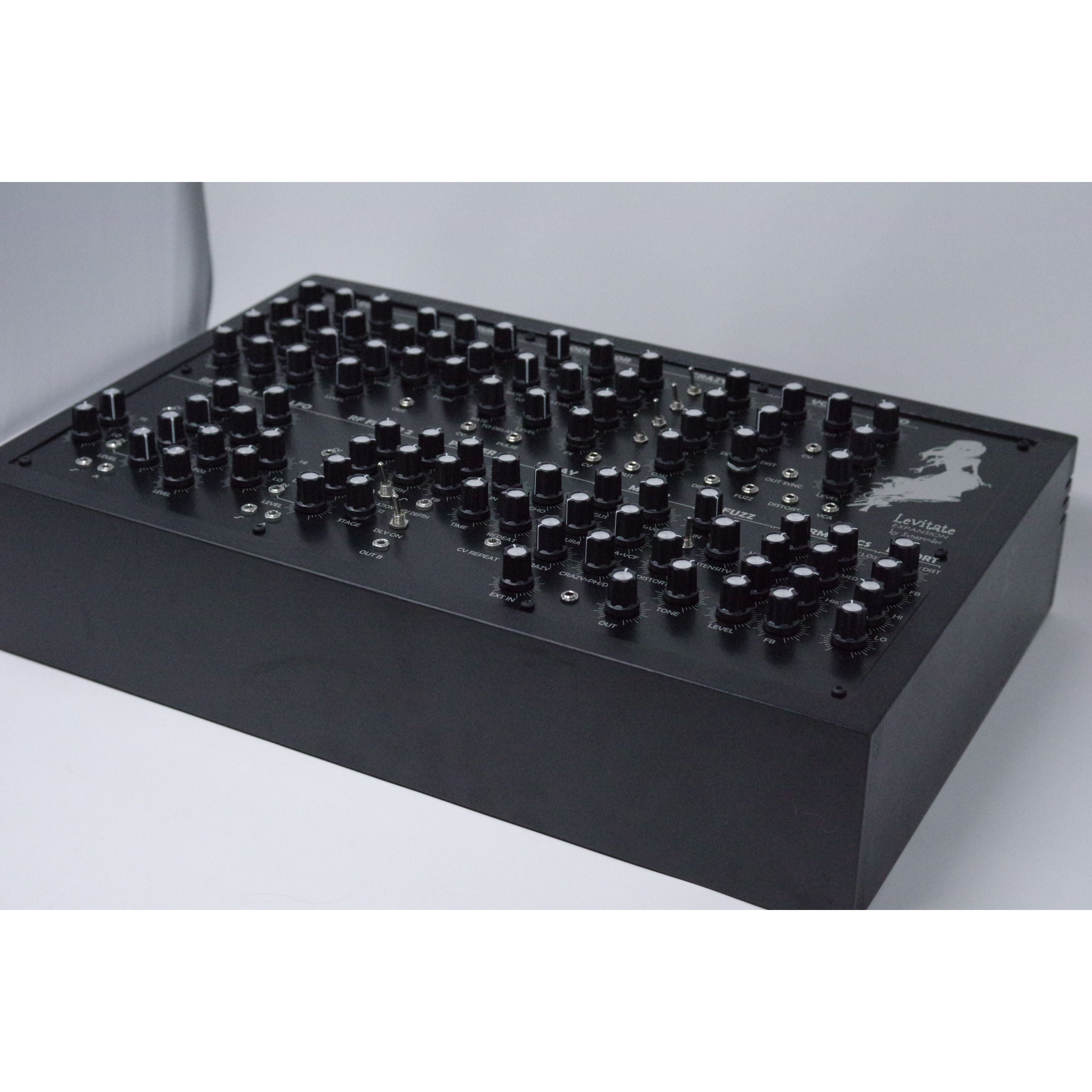

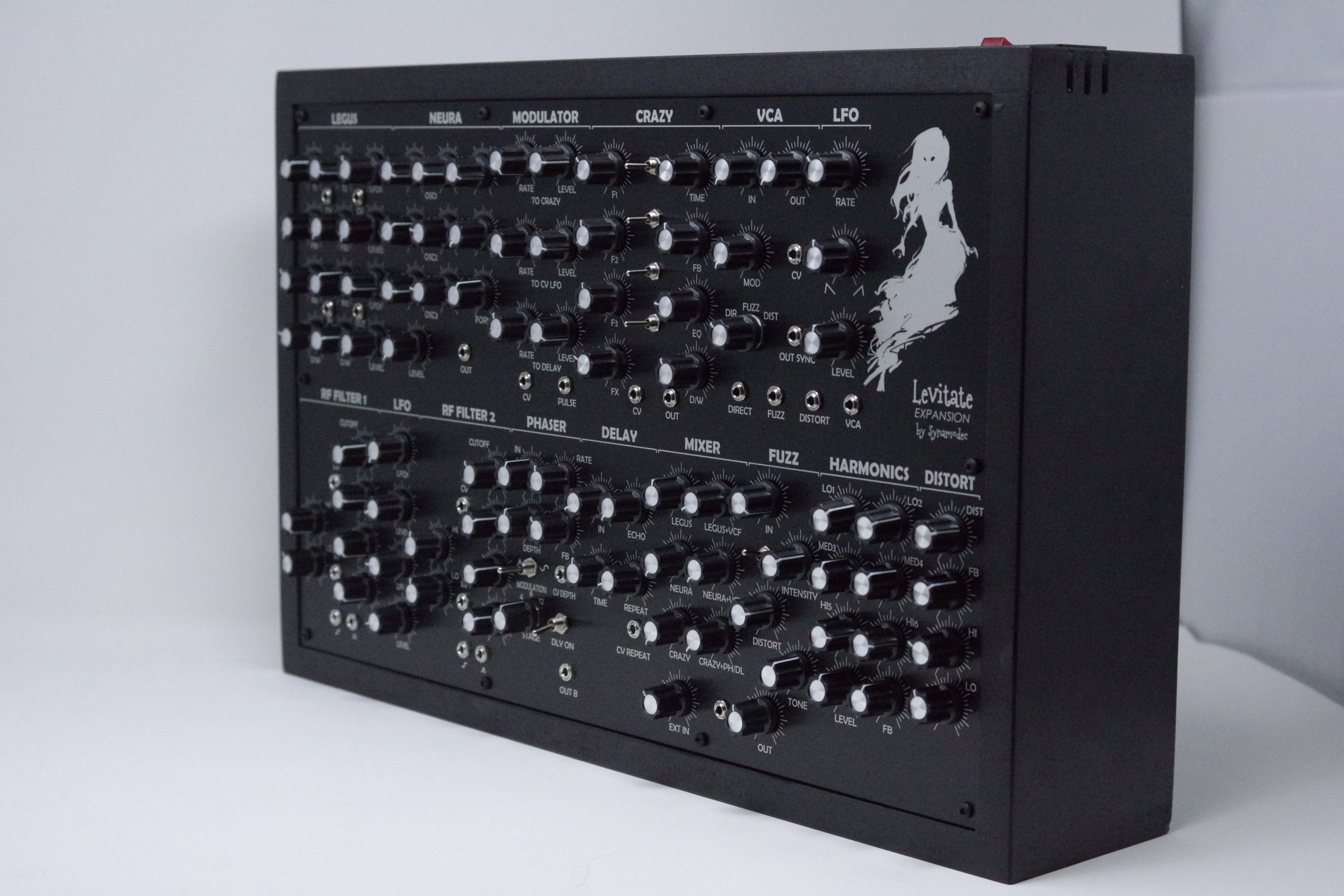

Synamodec - Levitate Expansion

The ultimate expansion of the original Levitate tabletop synthesizer with a huge collection of NEW Features and Eurorack patch points.

These include:

Three full signal generators - "Legus", "Neura", and "Crazy"

Mixer and lever for all stages + audio outputs per section

Phaser/Delay

VCF

Fuzz

Distortion

6 LFOs

The Levitate Expansion is presented in a Limited & Numbered edition of 3 and brought to you by the mind, passion and work of Synamodec.  Manufactured the old school way by hand in Spain in the year of 2023.  This is a Sound Art Machine for the times!

Dimensions: 19" x 12" x 4"

SPECS:

LEGUS

* 1 Extra out exterior

* 2 LFO included

* 1 Exterior input

* 2 Exterior CV in

NEURA

* Triple oscilator

* 1 Exterior output

CRAZY

* 1 Extra out exterior

* 1 LFO included

* 1 Exterior CV in

* EQ control included

VCF(2)

* Exterior signal input with level control each.

* Exterior CV in

* 2 Extra output  (HP, BP)

* 2 LFO included

PHASER/DELAY

* 1 Exterior CV in for delay

* 1 Exterior CV in for phaser (FB)

* 1 Extra out phaser (4P)

* 1 CV LFO for delay included

* 1 LFO included ( for modulate the CV LFO of the delay)

MIXER

FUZZ

6 BAND EQ/FILTER

DISTORTION

VCA

* 1 Exterior CV in

* 1 Gate/Trigg out (Sync)

ENVELOPE

OUTPUTS (4)

* Direct out from the mixer

* Out from mixer + fuzz + 6B equ

* Out from mixer + distortion

* Out from VCA (We can select with a switch which of the three previous

  outputs we introduce to the VCA)

* The four outputs are simultaneous
