Description

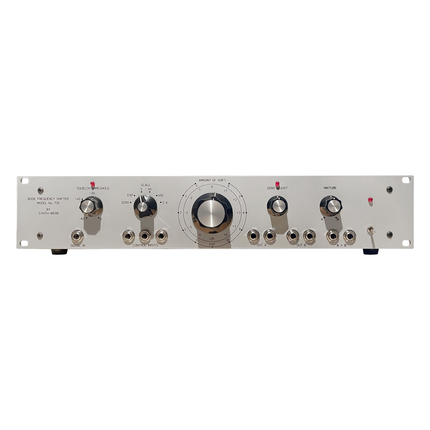

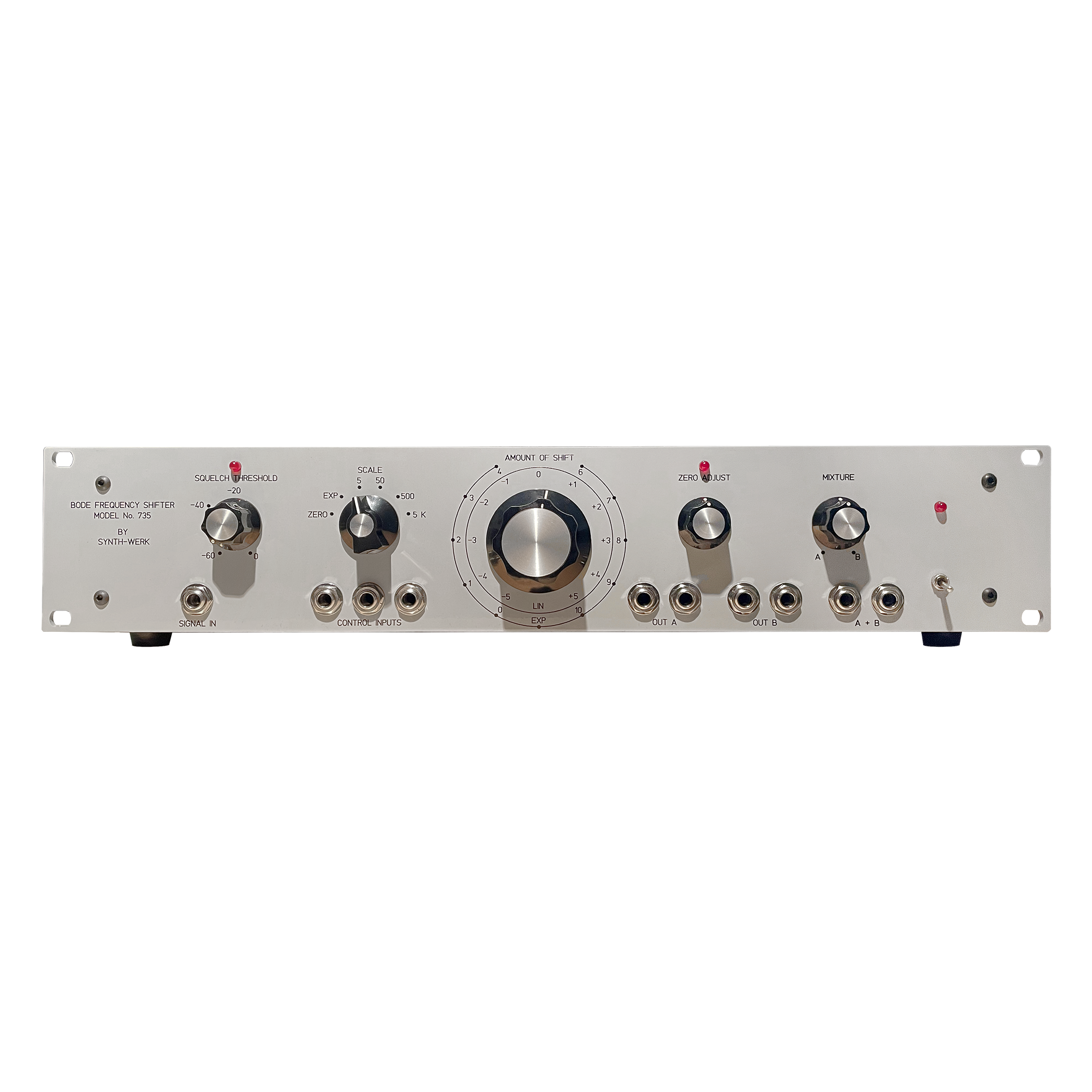

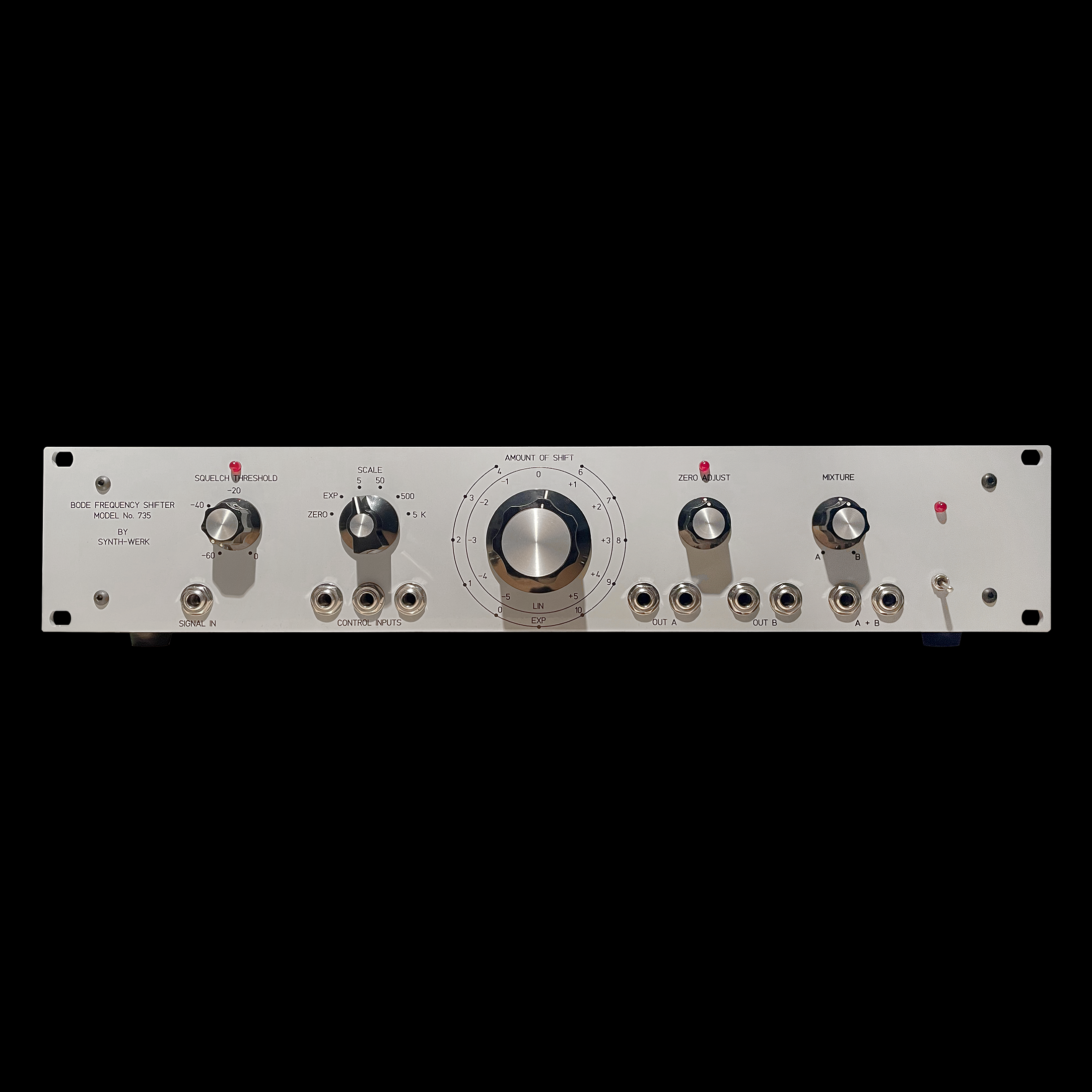

SW 735 BODE FREQUENCY SHIFTER
The Model SW 735 is the rack version of the Bode Frequency Shifter including a power supply.
From an electrical point of view it is identical to the Model SW 1630.
This Module is based on the original design from 1974
|
Nominal Input Impedance: |
50k ohm |
|---|---|
|
Nominal Input Level: |
+2dBm |
|
Frequency Range: |
30Hz to 16kHz |
|
Nominal Output/Input gain: |
Unity |
|
Less than 0.1% total hum and noise |
|
|
Variable threshold squelch minimizes apparent carrier bleedthrough due to input signal background noise |
|
|
Accurately shifts input signals over the audio frequency range of: |
30 Hz – 16 kHz |
|
Amount of shift is continuously variable from |
-5 kHz, through zero to +5 kHz |
|
Amount of shift is accurately voltage variable – either linear or exponential control mode is available |
|
|
Less than 1% total unwanted modulation and distortion products |
|
|
Power requirements: |
+/-15 Volt at + 100 mA / -100 mA |
Synth-Werk - SW 735 Bode Frequency Shifter
$3,495.00
