Synth-Werk - SW904C Filter Coupler

Synth-Werk - SW904C Filter Coupler FUNCTION DESCRIPTION SW904C Filter Couples is a connecting module which combines the functions of the... Read more Read more

Description

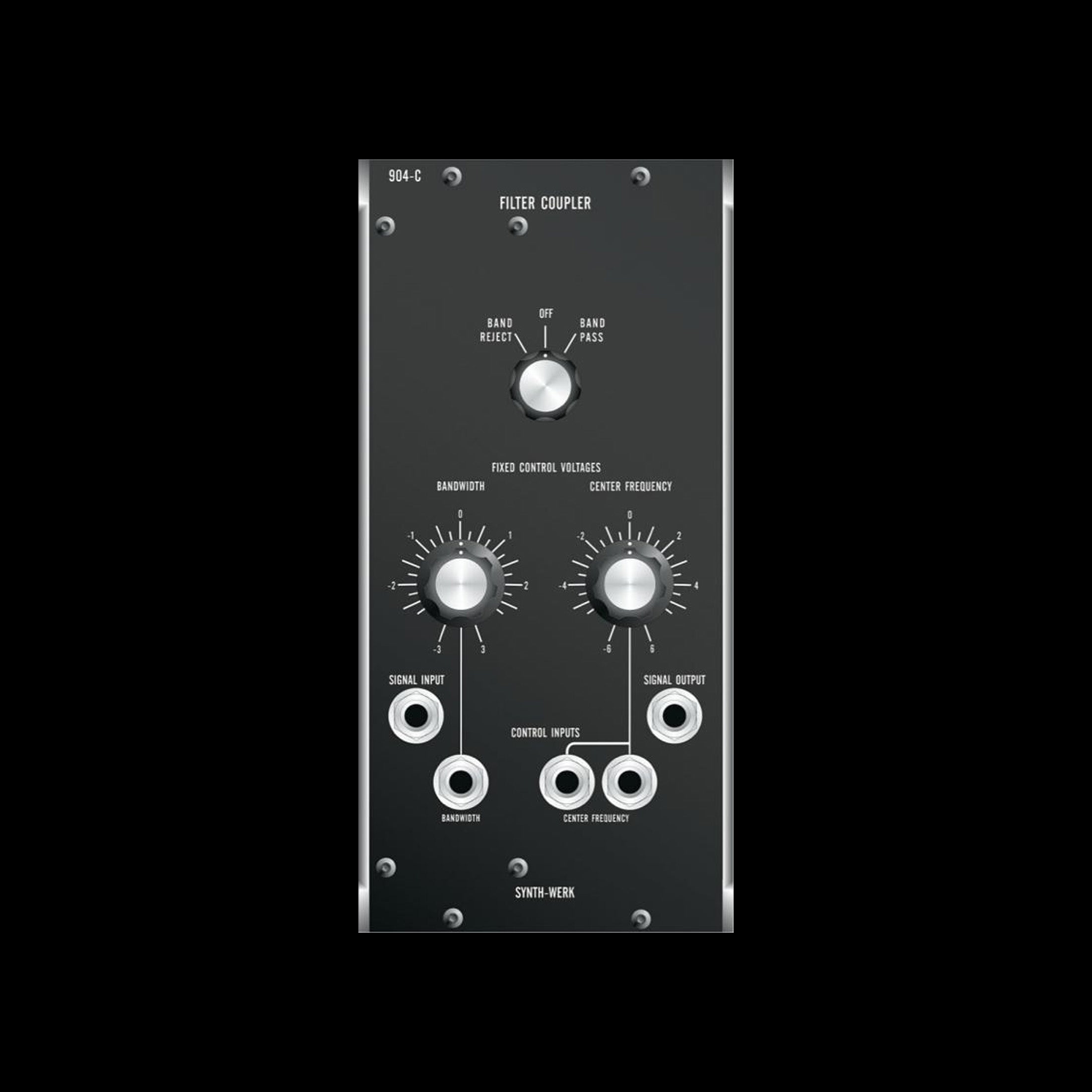

Synth-Werk - SW904C Filter Coupler

Name: Synth-Werk - SW904C Filter Coupler
Brand: Synth-Werk
Price: 499.00 USD
Availability: InStock

FUNCTION DESCRIPTION

SW904C Filter Couples is a connecting module which combines the functions of the 904A Lowpass and 904B Highpass Filters together. In the “off” position, the Highpass and Lowpass Filters are disconnected from the 904C and may be used independently. When switched to the “Brandpass” mode, Highpass and Lowpass Filters are coupled in parallel to process a central band of frequencies – deleting both bottom and top. The bandreject mode presents the inverse relationship, rejecting a central frequency band, and passing only the lowest and highest frequency components. Voltage controlled bandwidth and center frequency controls are included on the coupler. Bandwidth can be etended to three octaves with manual settings or control voltage. Center Frequency ranges from 5Hz to 20kHz, via manual or voltage controlled settings.

When using the 904C for Bandpass or Bandreject filtering, the following standard settings should be obeserved:
