Description
Similar in function to the Moog 907 Fixed Filter Bank, the SW914 Extended Range Fixed Filter Bank is a non-voltage controlled modifier with 14 separate passband controls: high-pass, low-pass, and 12 center frequency knobs. Each passband range has an attenuation slope of 12 dB per octave above or below the center frequency indicated.
This Extended Range Filter Bank is highly useful for emphasizing or attenuating frequency bands in the mid-range of hearing. Instrument simulation, especially double reeds, is a major application for this module due to their varied resonances in mid-range frequency bands. Varying frequency response in each of the half/ octave ranges, even slightly, will change the timbre of a tone as it is moved from one region to the next. Radically different timbres can be overlapped from one frequency range to another, by utilizing the 914 as a fixed cut-off filter. In one range, a particular timbre may predominate when mixed with another. When the signal is moved into a cut-off range, the non-filtered frequencies of the mix will assume maximum importance.

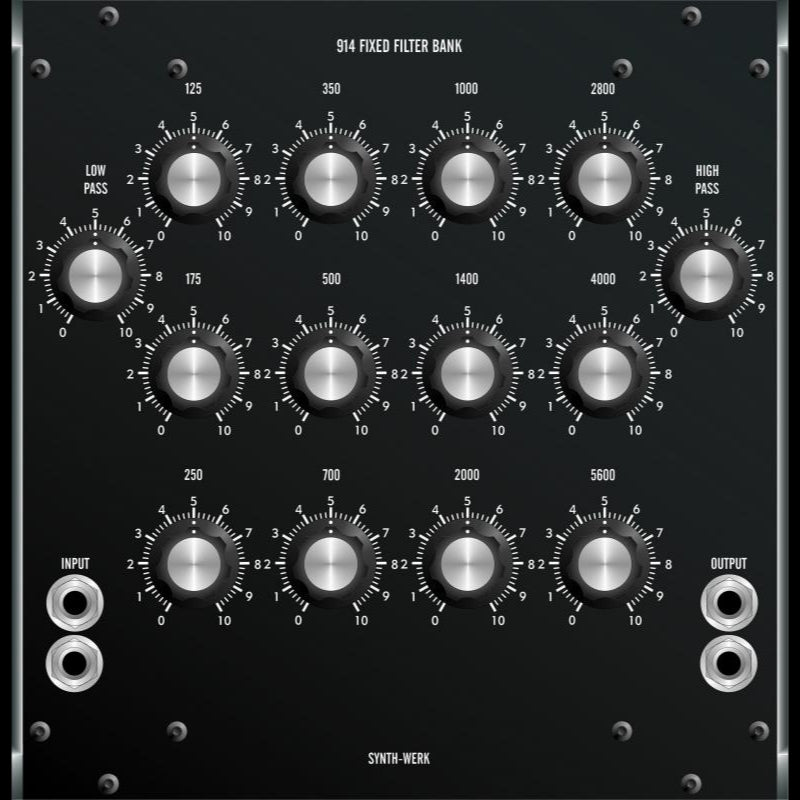

Synth-Werk - SW914 Fixed Filter Bank
$2,765.00Excl. VAT
Description
Similar in function to the Moog 907 Fixed Filter Bank, the SW914 Extended Range Fixed Filter Bank is a non-voltage controlled modifier with 14 separate passband controls: high-pass, low-pass, and 12 center frequency knobs. Each passband range has an attenuation slope of 12 dB per octave above or below the center frequency indicated.
This Extended Range Filter Bank is highly useful for emphasizing or attenuating frequency bands in the mid-range of hearing. Instrument simulation, especially double reeds, is a major application for this module due to their varied resonances in mid-range frequency bands. Varying frequency response in each of the half/ octave ranges, even slightly, will change the timbre of a tone as it is moved from one region to the next. Radically different timbres can be overlapped from one frequency range to another, by utilizing the 914 as a fixed cut-off filter. In one range, a particular timbre may predominate when mixed with another. When the signal is moved into a cut-off range, the non-filtered frequencies of the mix will assume maximum importance.
