Description

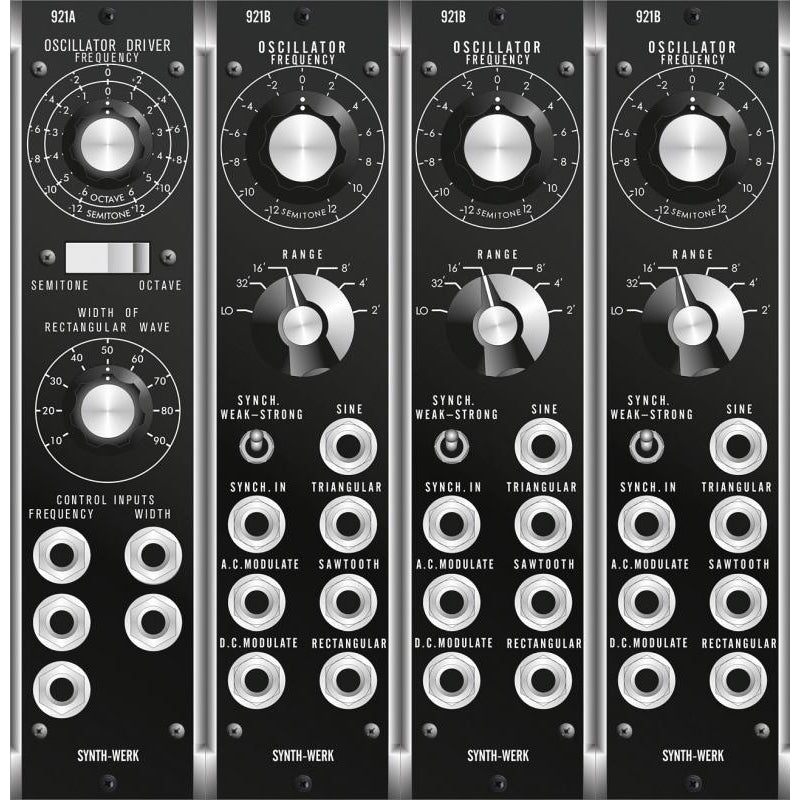

The SW921A Oscillator Driver is a control voltage processor which runs associated SW921B oscillators through internally wired connections. The SW921B generates frequencies from 1Hz to 40kHz minimum. This oscillator generates both sub-audio and audio frequencies for control and audio signal use. Fixed level outputs for sine, triangle, sawtooth and rectangular waveforms are available. DC Modulate is a linear frequency control input, AC Modulate input is a capacitor coupled circuit. SW921B Oscillators may be phase locked together via the Synch Input Jack and the associated three position Synch Switch. A sawtooth waveform is recommended for best synchronization results.

This Module is based on the original design from 1974.

TECHNICAL SPECIFICATION

SW921A-

Impedance: 100k ohm

Characteristic: 1V/Octave

Impedance: 100k ohm

SW921B

Number of outputs: 4 (Sinewave/ Sawtooth/ Rectangular/ Triangular)

Impedance of outputs: 1k ohm

Level of outputs: 0,6 V RMS

DC/AC Modulate: Linear FM / AC Modulate input signal is rolled off below 5 Hz

Synchronisation: Nominal input level -4 dBm

Mode Switch: Center position defeats synchronization. Strong position causes oscillator to lock onto harmonic or sub-harmonic signal. Weak position reduces locking strength by a factor of 4.

Power Requirements: +/-15V at +120mA/- 120mA.

All connected SW921B´s are supplied from SW921A.
