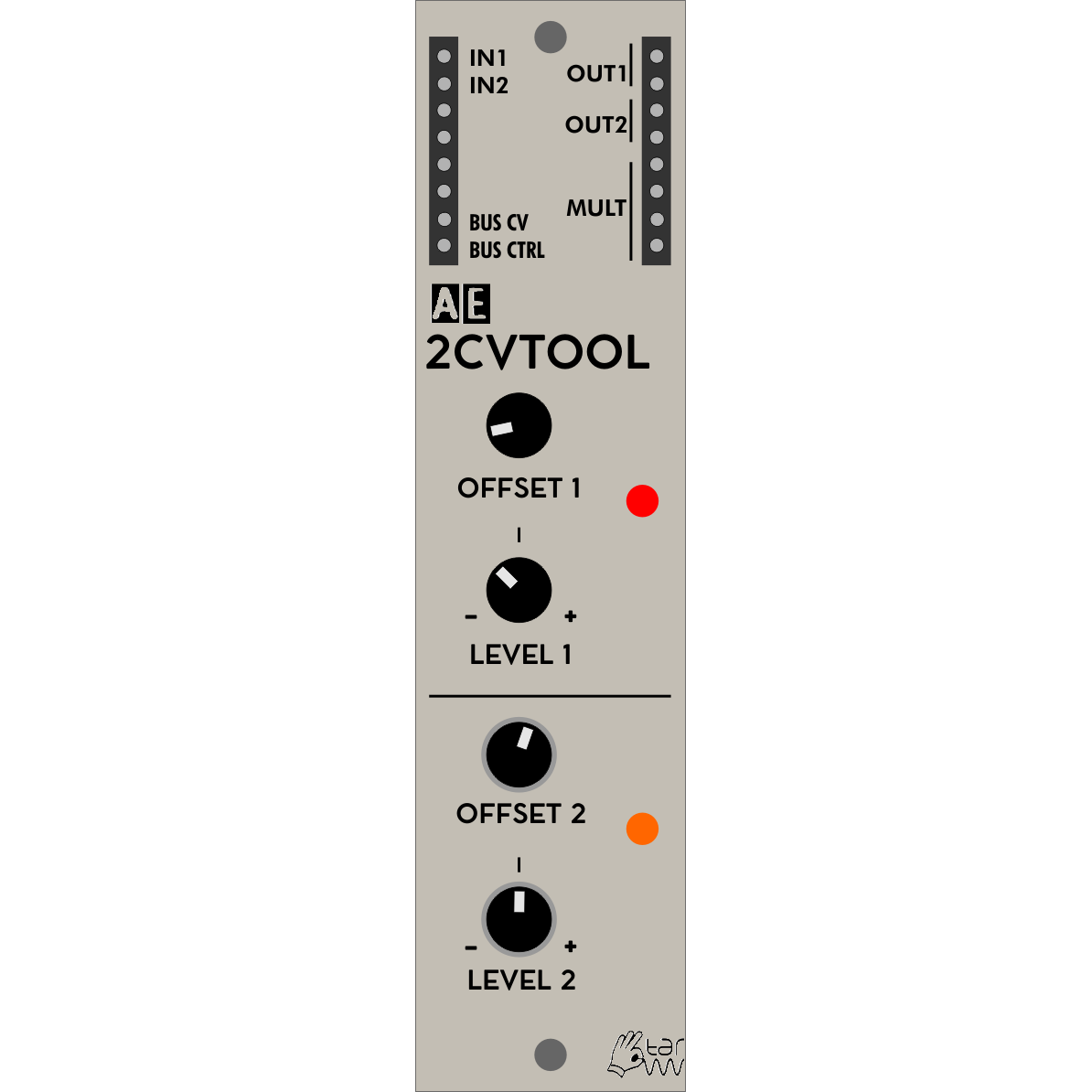

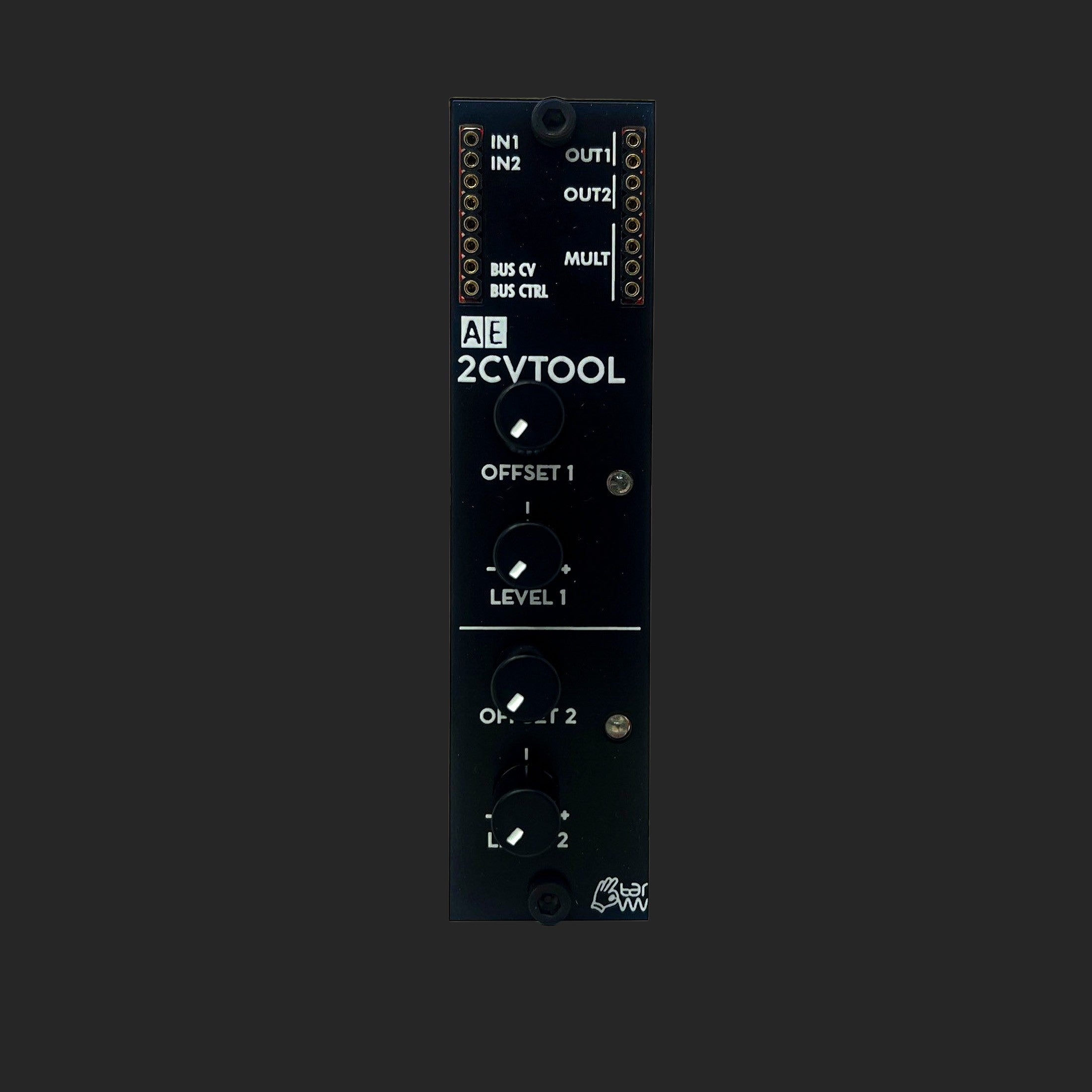

Description

The 2CVTOOL offers two units for offset and -/+ attenuation for CV signals, also known as "attenuverter". This can be useful for all kinds of modulation purposes.

Module power consumption: 2 mA

Inputs

• IN 1 - accept any CV or audio signal
• IN 2 - accept any CV or audio signal

Outputs

• Bus CV - CV signal from MIDI
• Bus CTRL - CTRL signal from MIDI
• OUT 1 (x2) - attenuated signal from IN1
• OUT 2 (x2) - attenuated signal from IN2
• MULT - passive multiple, not connected to the module's circuitry

Controls

• OFFSET 1 - Potentiometer to dial in the offset voltage for channel 1. This will be added to the incoming CV.
• LEVEL 1 - Potentiometer to select the attenuation. This is a bipolar control in that it can reduce the incoming voltage or increase it.
• OFFSET 2 - Potentiometer to dial in the offset voltage for channel 2. This will be added to the incoming CV.
• LEVEL 2 - Potentiometer to select the attenuation. This is a bipolar control in that it can reduce the incoming voltage or increase it.
