Tangible Waves - 2signalamp

Tangible Waves - 2signalamp

  • $30.00

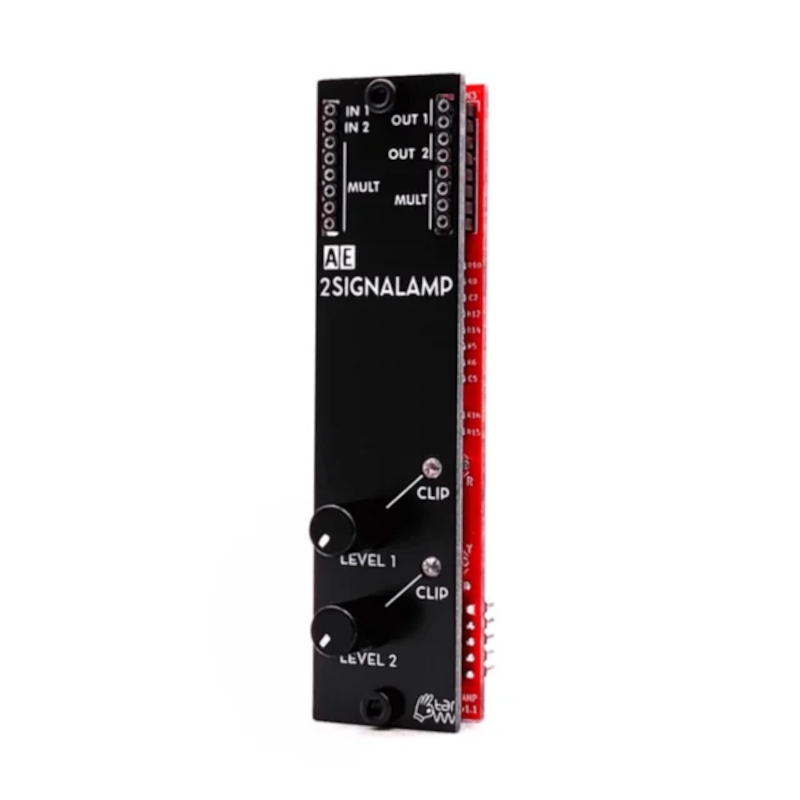

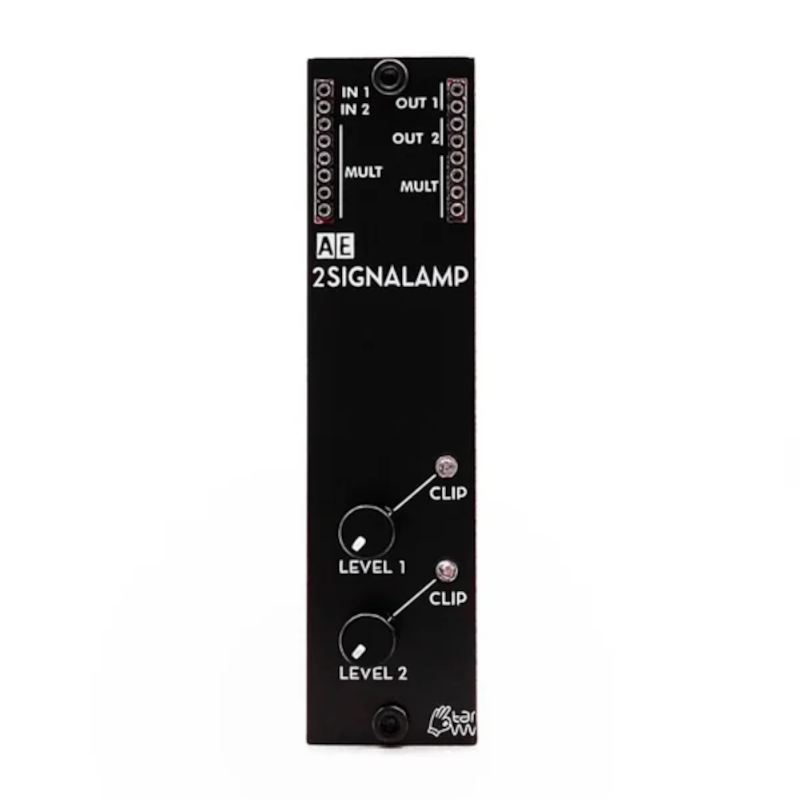

A signal amplifier module. There are 2 separate circuits in this module, with a maximum gain of 15-1.

Module power consumption: 2 mA

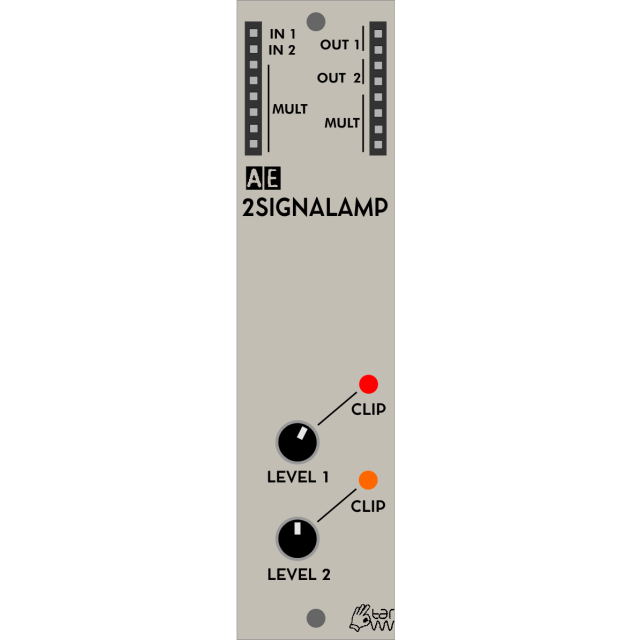

Inputs

  • In 1 - input for circuit one.
  • In 2 - input for circuit two.
  • Mult - a passive mixer/splitter completely separate to the module circuits.

Outputs

  • Out 1 (2) - output of circuit one.
  • Out 2 (2) - output of circuit two.
  • Mult - a passive mixer/splitter completely separate to the module circuits.

Please note that the input Mult is separate to the output Mult and both are bidirectional (i.e. use any socket(s) for in or out).


Controls

  • Level 1 knob - sets gain level of input 1, i.e the more clockwise you turn the knob the louder the output. If the Clip LED lights you have hit the maximum level the AE Modular can cope with
  • Level 2 knob - sets gain level of input 2, i.e the more clockwise you turn the knob the louder the output. If the Clip LED lights you have hit the maximum level the AE Modular can cope with

Patch Suggestions

As Robert suggest on the Tangible Waves website, this module is usually used to boost the triangle wave signal from the VCO, or external signals (usually via the 4 I/O module).

It can also be useful to boost the general signal level before the AE modular goes to an external mixer or recorder etc.

It can also be used as a simple mixer by putting the 2 outs into a Mult with another cable going from there to the next stage, can be useful for VCOs to save your 4ATT/Mix module for other work.
