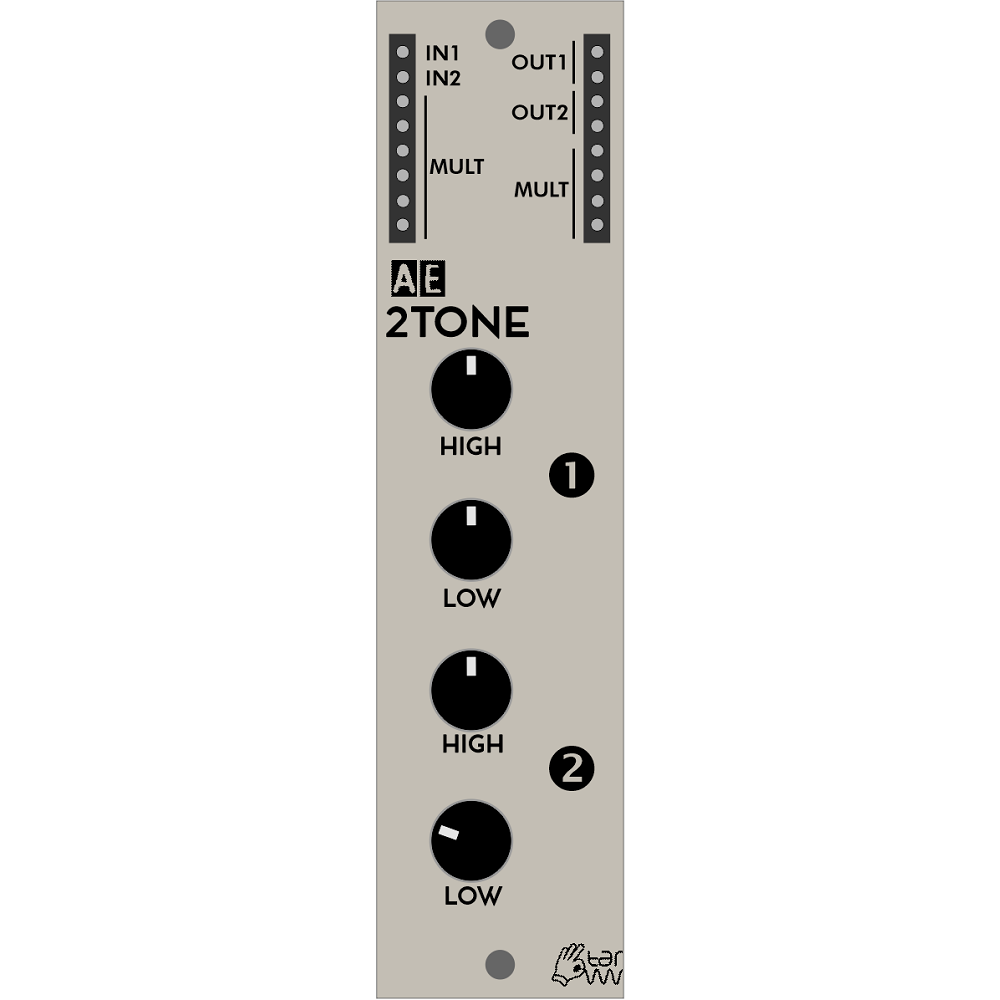

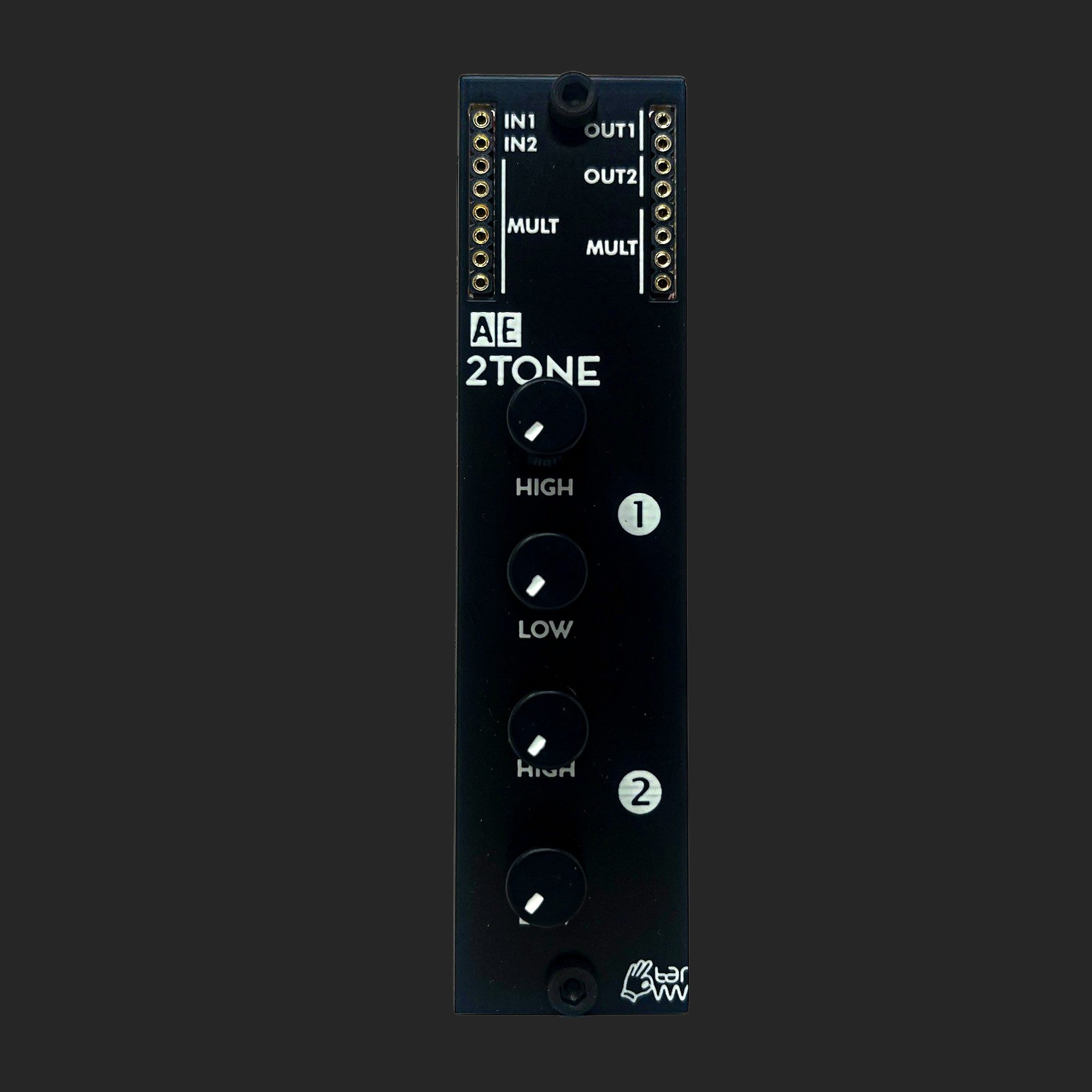

Description

2TONE is a dual bass-treble tone control, that is a quite useful companion for the MIXCONSOLE, to shape the overall spectrum of individual signal paths.

Module power consumption: 4 mA

Inputs

• IN1 - Audio signal for channel 1
• IN2 - Audio signal for channel 2

Outputs

• Out 1 - Adjusted signal for channel 1
• Out 2 - Adjusted signal for channel 2

Controls

• HIGH 1 - Adjust the high frequencies for channel 1
• LOW 1 - Adjust the low frequencies for channel 1
• HIGH 2 - Adjust the high frequencies for channel 2
• LOW 2 - Adjust the low frequencies for channel 2

Patch Suggestions

Use this to raise or lower certain frequencies of a sound source before sending it to the MIXCONSOLE or other mixing module.

It can be useful to free up a filter module is some cases, e.g. roll the top off a bass pitch to make it deeper sounding.

If you want to risk your speakers/headphones, you can feed one channel's output into the input of the other channel so you boost the signal twice.
