Tangible Waves - DIODE FILTER

Tangible Waves - DIODE FILTER

  • $40.00

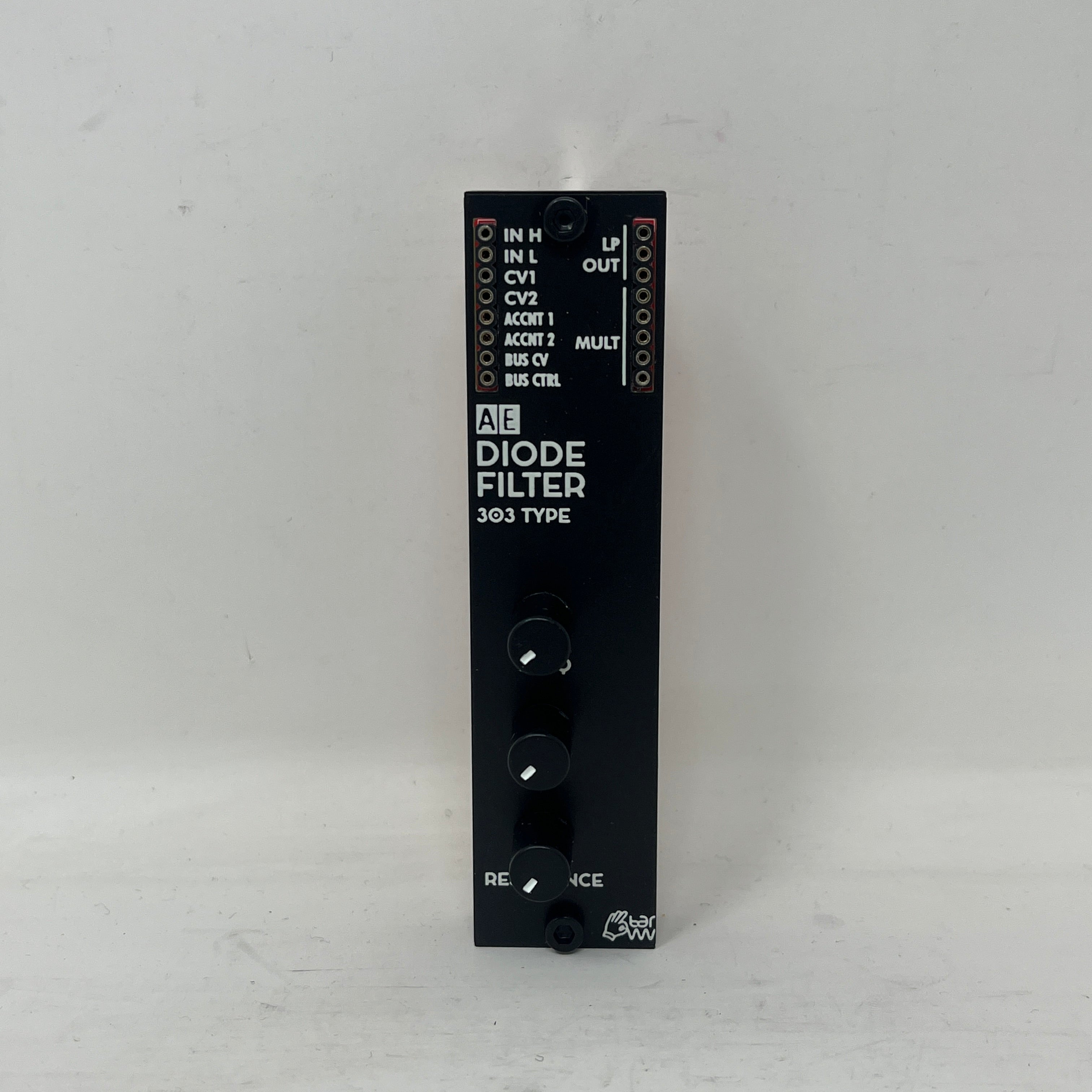

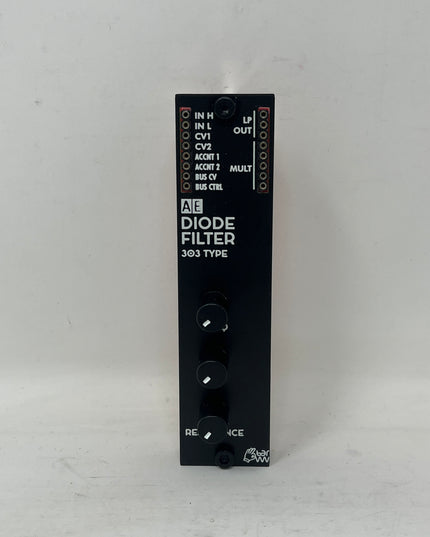

The DIODEFILTER is an adaption of the well-known diode ladder filter that became most popular by Roland's TB-303 bassline. And here it is for the AE modular!

Module power consumption: 3 mA


Inputs

  • In H - Input for lower level signals
  • In L - Input for higher level signals
  • CV1 - 0-5V control voltage input whose effect level is controlled by the CV1 knob.
  • CV2 - 0-5V control voltage input, with no controlled attenuation within this module.
  • Accnt1 -
  • Accnt2 -

Outputs

  • LP OUT (x2) - The audio signal after being filtered.
  • Bus CV - Voltage produced via a midi keyboard connected to the master module.
  • Bus CTRL - Voltage produced via a midi keyboard connected to the master module.

Controls

  • FREQ - Sets the Cutoff Frequency of the filter
  • CV1 - Controls the amount the CV1 input affects the cutoff frequency of the filter.
  • RESONANCE - the more this level is increased the more the frequencies around the cutoff frequency are enhanced/ amplified.
