Description

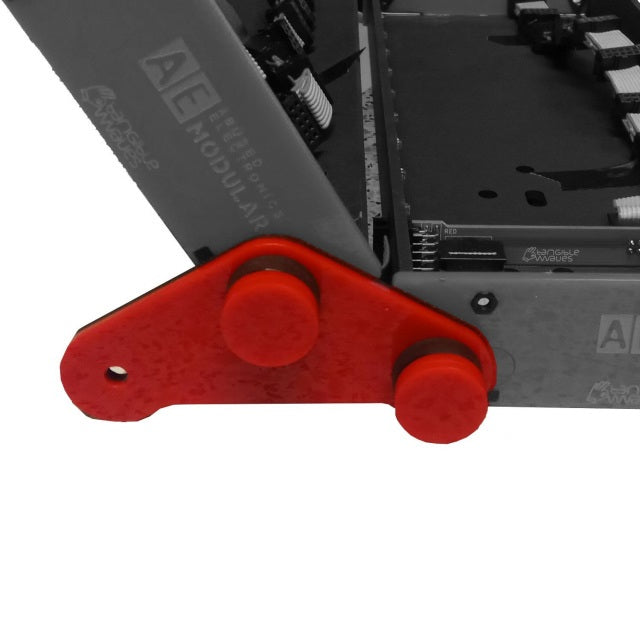

HINGE KIT TYPE 1



The case hinge kit allows it to join two cases at a free angle. It contains

• two joint elements
• four screws
• a connection cable between the cases.

This type is designed for an application where one case is flat on the surface and the other one mounted at a certain angle. The triangle shape has the advantage that the contact to the surface is exteded to the rear side so the complete unit has a stable stand.

Via the connection cable the bus and power supply is shared between both cases, so no extra power supply / second MASTER module is needed for the additional case.

Please note: This works only with the new cases available since January 2019. For connecting previous cases the RACKLINK module can be used, see here.

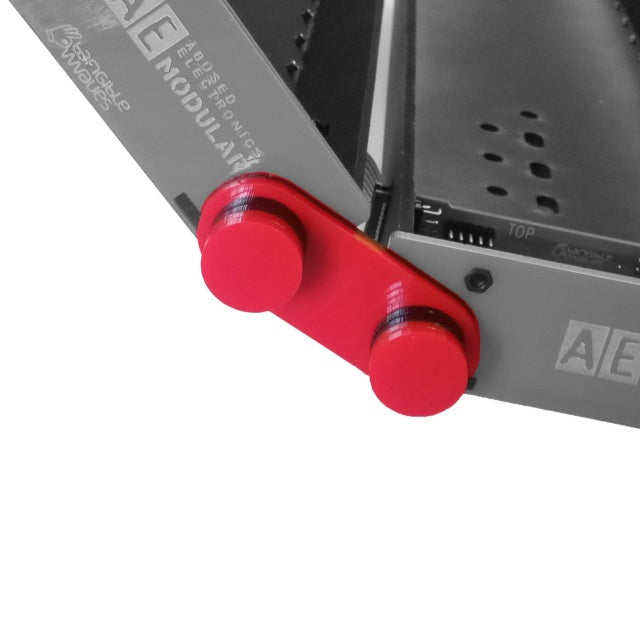

HINGE KIT TYPE 2



The case hinge kit allows it to join two cases at a free angle. It contains

• two joint elements
• four screws
• a connection cable between the cases.

This type is designed for an application where the lower case is already fixed above the surface (e.g. when mounting a third case to a combination of two cases connected with the hinge kit type 1).

Via the connection cable the bus and power supply is shared between both cases, so no extra power supply / second MASTER module is needed for the additional case.

Please note: This works only with the new cases available since January 2019. For connecting previous cases the RACKLINK module can be used, see here.
