Tangible Waves - METER

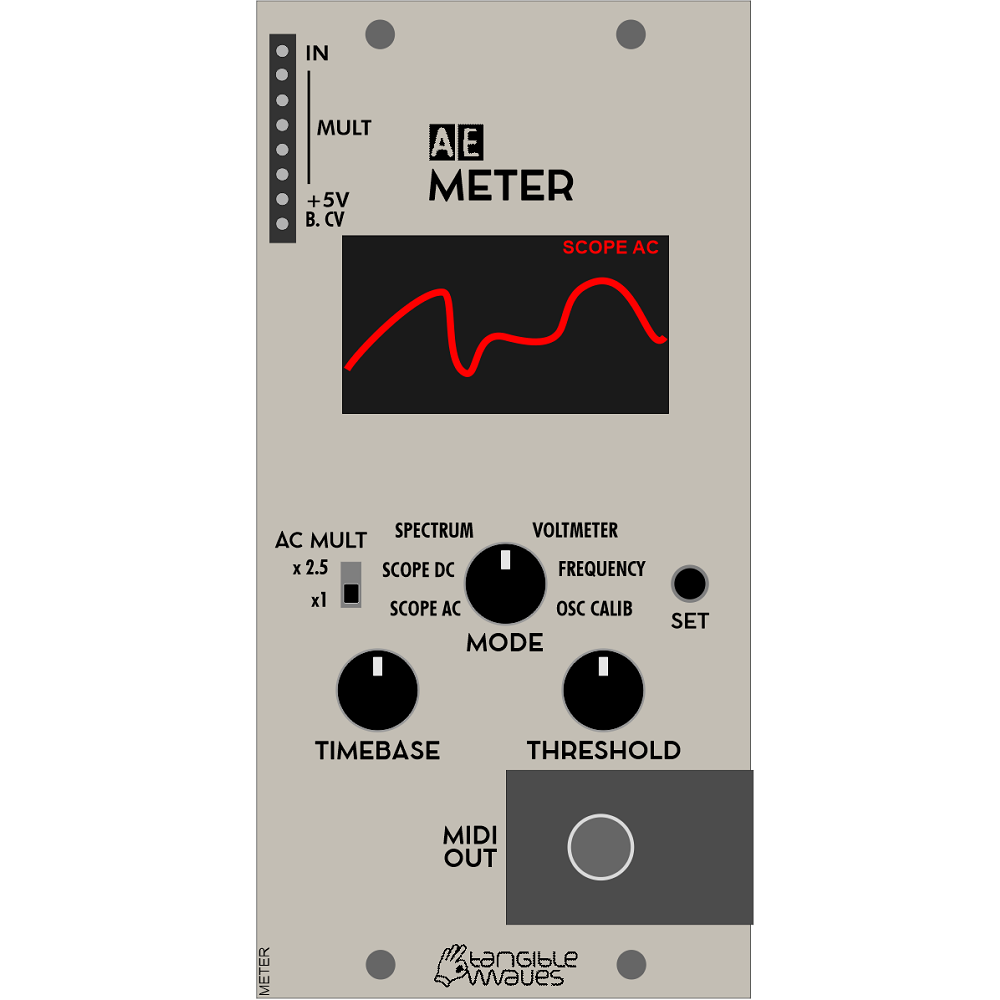

This is a multi-functional module for visualizing and measuring signals. Inputs IN - Signal to be displayed/analysed Mult - this... Read more Read more

Description

This is a multi-functional module for visualizing and measuring signals.

Inputs

IN - Signal to be displayed/analysed
Mult - this can be a simple mixer (only really worth it for CVs) or a way of splitting a signal to several outputs, e.g. a trigger for Envelopes for the filter and VCA at the same time. You can plug anything (in/out) into any mult socket.,

Outputs

+5V - A steady 5 volt signal.
B.CV - The bus voltage derived from the midi note number via the Master module. The higher the note number the higher the voltage
Midi Out - Midi CV from bus via Master module, defaults to A for tuning purposes. See Oscillator calibration later.

Controls

Timebase - this lets you zoom in to see a waveform (or part of), or see several waveforms at once.
Mode - selects modes as below

There are 5 different display modes for the input signal, and a 6th mode for calibrating oscillators using the midi out socket on this module.

The 5 modes are

oscilloscope AC - for displaying alternating current signals
oscilloscope DC - for displaying direct current signals
spectrum analyzer - display the frequency spectrum of the input signal, lowest frequency to left, higher to right, the taller the graph spike the louder that frequency is.
voltmeter displays the voltage of input signals
frequency meter displays the frequency of the input signal; displayed as hertz and as musical note with +/- 100 cent difference. (The frequency of the root "A" can be adjusted) how

Threshold - this sets the level at which the display will start displaying the signal.
AC Mult switch - this is usually set on x1; this is the module using the signal as it is. the x2.5 position increases the height of the display to increase visuals and can help with fine tuning the signal.

Display

The reason for buying this module!

Patch Suggestions

This module can be used for oscillator calibration. Take the Midi out CV to your oscillator CV in, Pick a simple waveform out and put that into the Meter module in. Put the Meter module in Osc. Calib mode and follow the instructions on the screen.

This module is great for adding activity for a video, or low light level playing!

It can be useful for helping set the gate length on triggers from LFOs etc.
