Name: Tangible Waves - Nyle Filter (Steiner Type)
Brand: Tangible Waves
Price: 62.99 USD

AE Modular Format

Product form

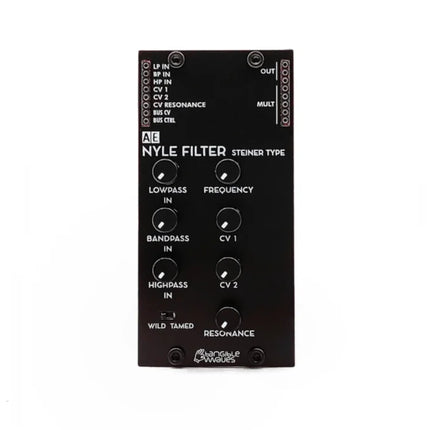

Tangible Waves - Nyle Filter (Steiner Type)

The NYLE FILTER is an adaptation of the Steiner Filter for the AE modular system. It contains the classic filter... Read more Read more

Description

The NYLE FILTER is an adaptation of the Steiner Filter for the AE modular system. It contains the classic filter types lowpass, highpass and bandpass with adjustable filter frequency and resonance. The unique feature of this filter type is that there are separate inputs for the different filter types (not separate outputs as with other filters). This allows quite unusual sounds, if different signals are fed into the different inputs. Each input has its own attenuator. The sound goes from quite soft filtering with low resonance setting to a quite intense resonance peak to full self-resonance. On newer models there is a switch to change the resonance characteristics from "wild" to "tamed".

Inputs

LP IN - audio signal going through the Lowpass curve of the filter
BP IN - audio signal going through the Bandpass curve of the filter
HP IN - audio signal going through the Highpass curve of the filter
CV 1 - accepts CV control for cutoff frequency, this will affect all three filter curves
CV 2 - additional CV control for cutoff frequency, this will also affect all three filter curves
CV Resonance - CV control for the resonance

Outputs

OUT (3) - the combined and mixed output of the filtered input signals
MULT (5) - a multiple which is disconnected from the filter circuitry
BUS CV - this sits below the input jacks on the left side and will output CV pitch from a connected MIDI device
BUS CTRL - this sits below the input jacks on the left side and will output the MIDI control message from a connected MIDI device (CC20).

Controls

LOWPASS IN - attenuator for the level of the signal from LP IN before it gets passed into the lowpass signal path.
BANDPASS IN - attenuator for the level of the signal from BP IN before it gets passed into the bandpass signal path.
HIGHPASS IN - attenuator for the level of the signal from HP IN before it gets passed into the highpass signal path.
FREQUENCY - controls the cutoff frequency for all filter types
CV 1 - attenuates the effect of the CV 1 control voltage input
CV 2 - attenuates the effect of the CV 2 control voltage input
RESONANCE - controls the resonance of the filters
WILD/TAME - on newer models this switch controls the resonance behaviour
