Tangible Waves - ORNAMENT & CRIME

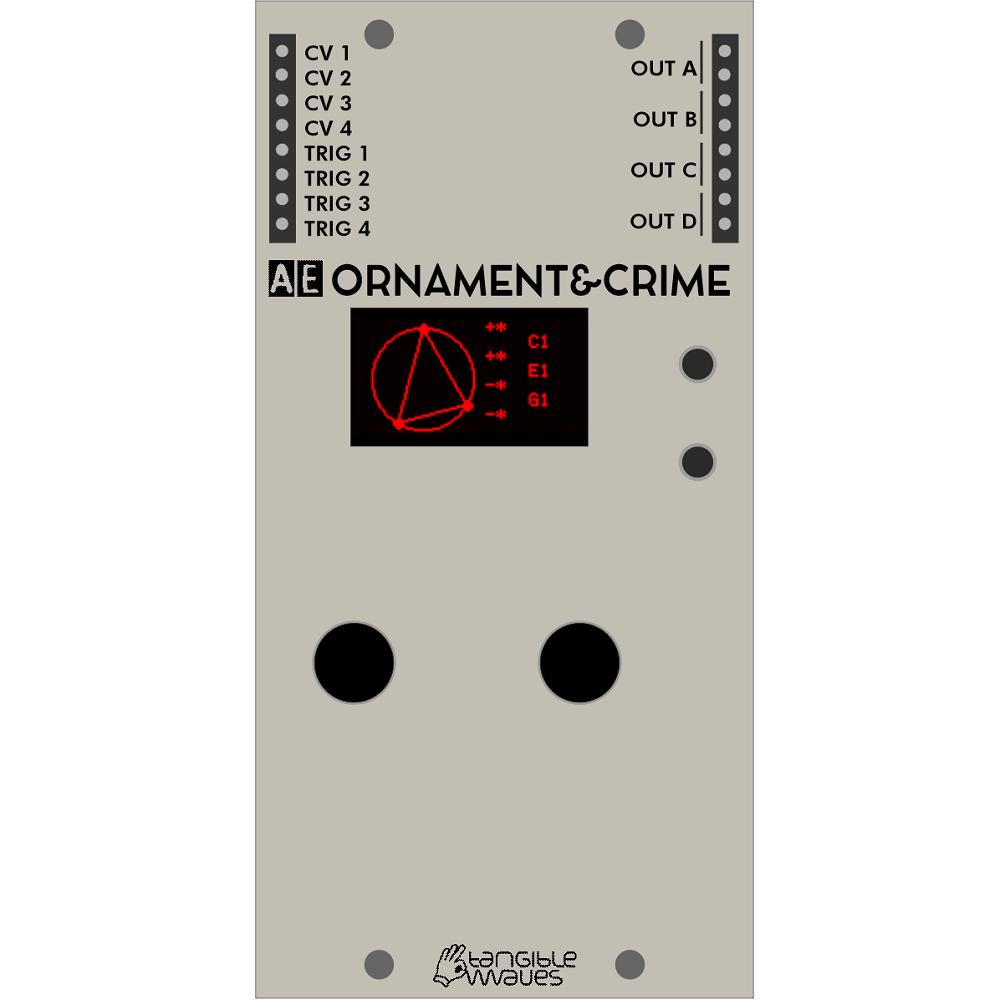

This is a clone of a special and well-known Eurorack module, which offers a hundred ways of processing and generating CV and modulation signals. The AE version behaves in any way just like the Eurorack module (except for the ability of processing negative voltages which simply don't exist in AE) and may well become the brain in your rack. The module is based on a Teensy 3.2 microcontroller board and can easily be reprogrammed. You can choose whether to get the original firmware or the alternative Hemisphere Suite pre-installed.
- CV 1, 2, 3, 4 - Input channels for CV signals. It depends on the currently active mode what these are for.
- TRIG 1, 2, 3, 4 - Input channels for trigger signals. It depends on the currently active mode what these do.
- OUT A, B, C, D - CV or trigger outputs depending on the currently active mode.
These controls are generic and do different things depending on which firmware is installed and which mode is currently active.
- Button Up
- Button Down
- Left Knob
- Right Knob
Module power consumption: 60 mA
