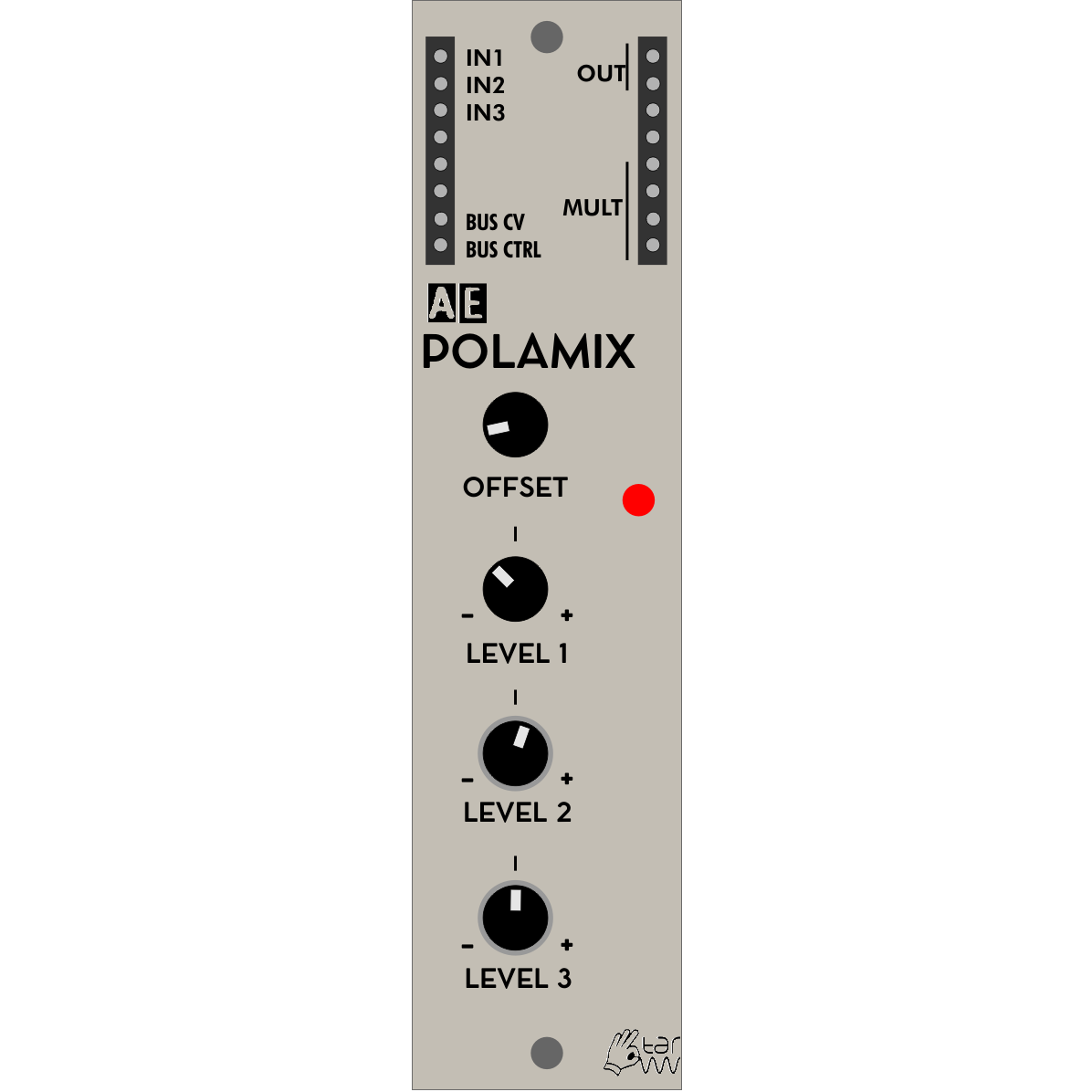

Tangible Waves - POLAMIX

The POLAMIX is similar to the 2CVTOOL in that you can offset and -/+ attenuate CV signals, but it also acts as a 3 channel mixer. Try to use this with 3 LFOs for modulation mayhem!

Module power consumption: 2 mA

Inputs

• IN 1 - accept any CV or audio signal
• IN 2 - accept any CV or audio signal
• IN 3 - accept any CV or audio signal

Outputs

• Bus CV - CV signal from MIDI
• Bus CTRL - CTRL signal from MIDI
• OUT (x2) - output signal of the mix of attenuated 3 channels
• MULT - passive multiple, not connected to the module's circuitry

Controls

• OFFSET - Potentiometer to dial in the offset voltage for all three channels. This will be added to the incoming CV on each channel.
• LEVEL 1 - Potentiometer to select the attenuation. This is a bipolar control in that it can reduce the incoming voltage or increase it.
• LEVEL 2 - As above for channel 2.
• LEVEL 3 - As above for channel 3.
