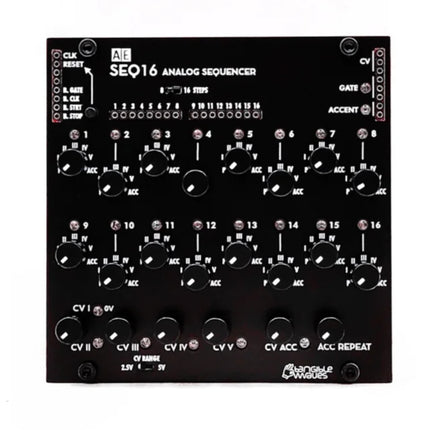

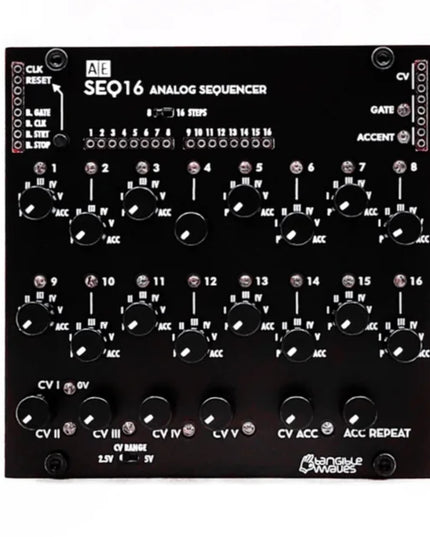

Tangible Waves - SEQ16
An analog 16-step CV sequencer.
The SEQ16 is a 16-step sequencer for controlling oscillator pitch and triggering envelopes.
Compared to "classic" analog sequencers it works a bit different: Instead of setting the CV for each step independently (which means in fact "tuning" each step which can be a bit tedious), the SEQ16 has 5 knobs for presetting different CV's (= notes); each of the 16 step knobs selects one of these CVs, plus 0V (=base note) plus Pause (no trigger output). So some CVs have to be fine-tuned once ; with the step knobs you can focus entirely on the sequence itself and you can even modify it on the fly, still remaining in tune.
An additional feature is "accent"; this can be set for each step by turning the knob fully clockwise. If a step is set to "accent", a separate trigger output is set and also a gate repeat for the regular gate output can be selected (from one to eight repeats).
