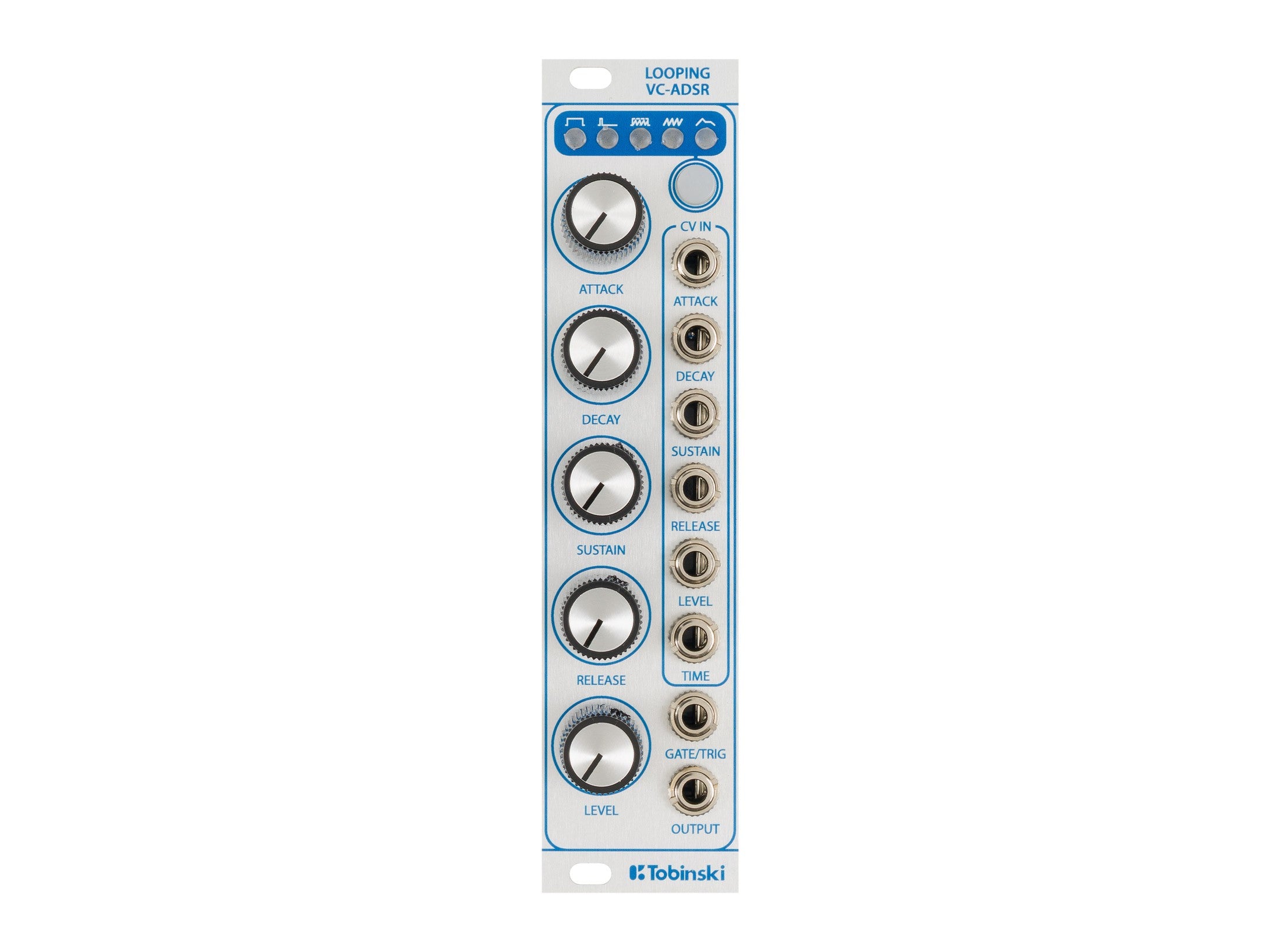

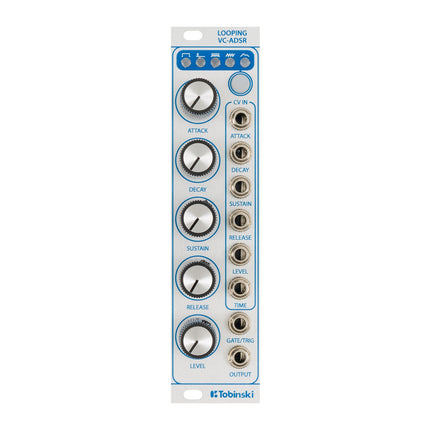

Tobinski Looping VC-ADSR

Tobinski's Looping VC-ADSR is a compact but highly flexible modulation source for any Eurorack system, featuring full voltage control over all stages a number of operating modes. Like most ADSR-style envelopes, you'll find controls for Attack, Decay, and Release time, Sustain level, as well as the overall Level of the envelope. In addition to CV inputs for all of these, plus the overall Time scaling of the envelope, the Looping VC-ADSR can operate in five different modes for different behaviors. You can define the response to gates or trigger signals, looping behaviors, and linear/exponential curvatures. If you're seeking a fully-featured envelope generator, look no further than the Looping VC-ADSR by Tobinski.

Looping VC-ADSR Features

• ADSR envelope generator
• Controls for Attack, Decay, Sustain, Release, and Level
• CV inputs for Attack, Decay, Sustain, Release, Level, and Time
• Gate/Trigger Input
• Trigger mode
• Gated and standard Looping modes
• Linear/Exponential modes
• 0-10V output
