Udo Audio - Super 6 Desktop

  • $2,160.00

The brand new, super compact and beautifully designed Super 6 Desktop offers the irresistible combination of a powerful and accessible musical instrument with flexible and immediate control, gorgeous analog sound and unrivalled build quality.  All in a desirable portable format designed to open the Super 6 to a new audience.

Key features

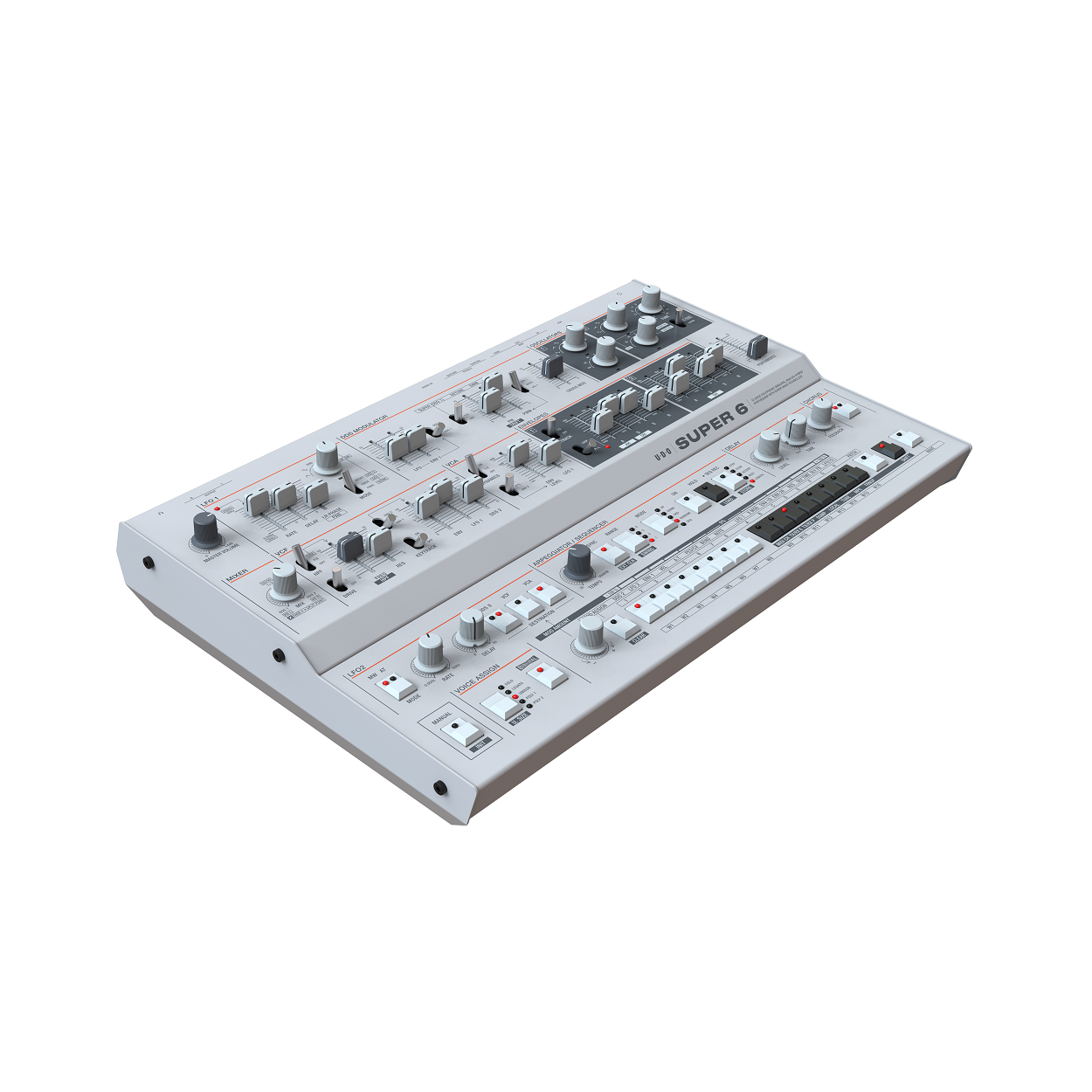

* A full featured Super 6 Analog Hybrid 12-Voice Synthesizer in a beautifully designed, compact, portable, all metal desktop chassis

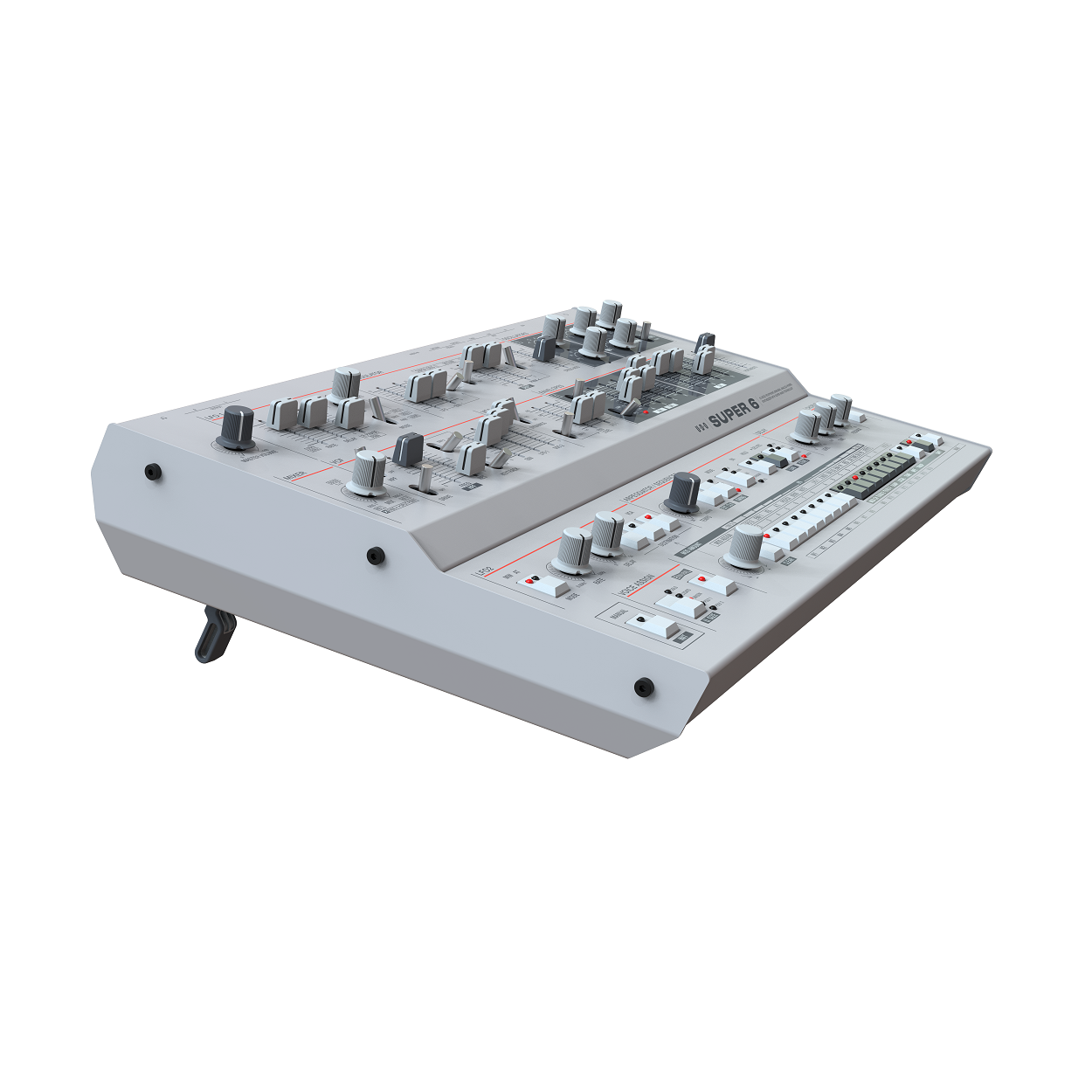

* Ergonomic features such as VESA mount compliance, optional rack ears (7U) and robust flip up feet offering versatile integration into your studio.
* Large format, high quality potentiometers and switches for unparalleled tactile feel and exemplary lifespan
* Additional features such as drift control, independent control of analog Highpass filter, pan spread control and advanced envelopes and polyphonic aftertouch
* Polychain option (with Super 6) and MPE operability in future update

Plus, all the great features of the Super 6:

* Gorgeous sounding 12-voice Polyphonic Binaural Analog-Hybrid Synthesizer with Superwave Technology
* Superior build quality and intuitive hands-on control for expressive performances with no menus or menu-diving
* State-of-the-art FPGA-based oscillators featuring Direct Digital Synthesis (DDS) and downloadable waveforms
* Real Voltage Controlled Analog filters and amplifiers and modulators
* Flexible loopable envelopes, LFOs and modulators with audio rate modulation
* Immediate and easy to use arpeggiator and sequencer and 24-bit Digital effects section

Full Super 6 Spec List:

•     FPGA-based Super-wave oscillator core sampled at 50MHz with a
centroid oscillator and six sister oscillators that can be dynamically
de-phased in the stereo field
•     Waveshapes: sine, sawtooth, square, triangle, noise and 16 userdownloadable alternative waveforms
•     Alternative DDS 1 waveform format:
•     Normalized, single-cycle waveform with 4096 points
•     16-bit signed integer format samples
•     Bandlimited at sampling frequency/8 (Nyquist/4).
If 4096 Hz is your sampling frequency, then 512 Hz is the
upper limit of your passband.
•     Binary file with no header data and file extension .ws6

•     FPGA-based algorithmic oscillator core sampled at 50MHz
•     Waveshapes: sine, sawtooth, square, triangle, noise, pulse
•     Can be hard-synced to DDS 1
•     LFO mode
•     Sub oscillator mode (can be activated when in LFO mode)
•     Pulse waveform with variable pulse width and PWM

•     LFO and envelope modulation of DDS 1 & DDS 2 pitch
•     Selectable ½ Super or full Super mode for DDS 1
•     Sister oscillator detune spread control for Super waves
•     Pulse-width control for pulse waveform
•     LFO and/or ENV 1 can modulate the sister oscillator
detune spread for the Super waves and the pulse-width for the standard
•     DDS 2 to DDS 1 cross-modulation for deep FM Sounds

•     Stereo audio input that feeds through the VCA, VCF and effects section
•     Gate triggering of envelopes and LFO 1 based on audio input level with
a variable-gain input stage
•     Main LFO with low and high-frequency modes, rate adjustable from
0.05 Hz to 20 kHz
•     Left-right phase control for stereo effects, harnessing the binaural
sound engine
•     Can be free-running or reset on note press
•     One-shot mode allows LFO 1 to act as an additional envelope
•     Keyboard tracking mode for high-frequency LFO (useful for FM sounds)
•     LFO 1 can be mapped through the DDS 1 or DDS 2 audio path in either
fixed or tracking high-frequency modes for use as a drone or a
third oscillator
•     Can be synchronized with the sequencer and arpeggiator as well
as an external clock

•     Adjusts the mix-level of DDS 1 and DDS 2 audio signals
•     When in X-Fade mode, adjusts split point on the keyboard of
crossfaded DDS 1 and DDS 2 (or audio input) signals
•     The SSI2144 reprises the SSM2044 of legacy chipmaker Solid State Micro
Technology, which many believe to be the best-sounding analog synthesis
filter IC ever produced. Based on Dave Rossum’s patented classic
improved ladder topology, the SSI2144 allows rich tonal characteristics
that showcase the very best attributes of subtractive synthesis.
•     Analogue 4-pole low pass self-resonant filter
•     Two levels of overdrive
•     High pass filter with fixed frequency or linked to low pass filter for a
bandpass response
•     Selectable keyboard tracking modes with filter autotune for accurate
keyboard tracking
•     Modulation by ENV 1 and/or ENV 2, LFO 1 and DDS 2

•     Analogue VCA with selectable fixed or variable envelope (ENV 2) modulation
•     LFO 1 modulation
•     Dynamics control for selectable velocity sensitivity

•     Invertible Hold-Attack-Decay-Sustain-Release, mappable through
modulation matrix
•     Looping mode with selectable keyboard tracking for use as an LFO
or FM source

•     Attack-Decay-Sustain-Release, multiple destinations

•     Voice modes: Poly 1, Poly 2, Solo, Legato, variable size and type Unison
•     LFO 2 with rate and delay controls, selectable triggered and always-on modes
•     Variable portamento
•     Expression pedal and sustain pedal inputs
•     Playable spring-lever keyboard octave selector
•     MPE MIDI compliance with response to note on and off velocity
•     Polyphonic aftertouch, polyphonic pitch bend and polyphonic expression

•     Intuitive modulation matrix with pre-defined destinations and also
mapping to a wide range of front panel controls
•     LEDs give clear feedback on mappings and modulation depths
•     20x audio-rate modulation computation

•     MIDI-syncable, multi-mode arpeggiator with smart-hold
•     MIDI-syncable 64-step sequencer with programmable note,
rest, slide, accent and length tracks
•     LFO 1 and delay controls can be locked to the
arpeggiator/sequencer clock
•     16 rewritable memory locations for storing sequences

•     Dual-mode stereo chorus using 24-bit 192 kHz processing
•     Syncable and modulatable stereo delay with 24-bit 192 kHz processing

•     128 rewriteable patch memories with 64 factory patches and 64
empty slots for user patches
•     Superior build quality, easy access buttons, sliders, knobs and a
menu-free interface

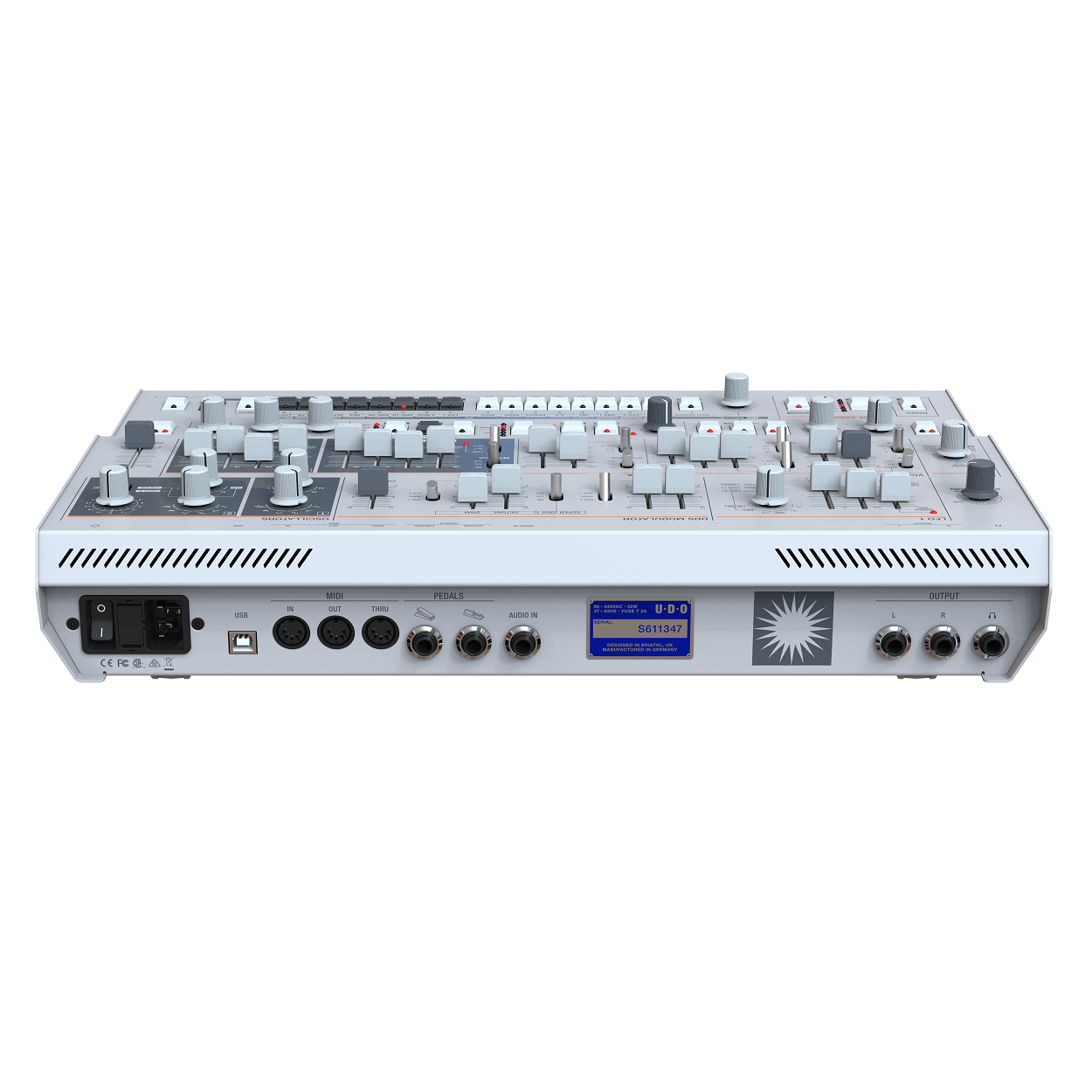

•     MIDI in, out and thru on DIN connectors
•     USB IO for MIDI and patch, sequence and waveform management
•     Audio input for stereo ¼” jack
•     Main left and right outputs for unbalanced ¼” jacks
•     High-quality stereo headphone power amplifier

•     Easy file upload and download of patches, sequences and waveforms
via simple USB ‘memory stick’ type interface with no extra drivers or
applications required
•     Easy OS upgrade over USB
