Description

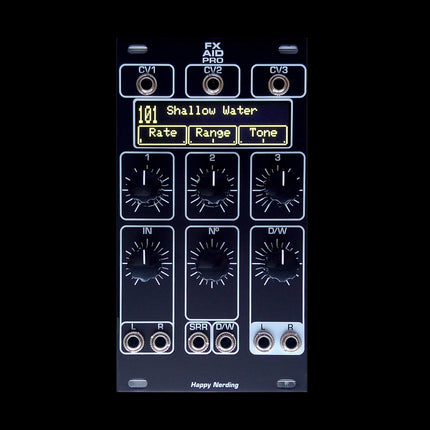

FX Aid Pro Eurorack Effects with OLED Control

The Happy Nerding FX Aid Pro puts 200 onboard effects, an OLED display and flexible modulation into a 14HP Eurorack module. See the current effect's number, name and three parameters as you shape your sound, then save your settings in 10 user presets.

Arrange effects in your preferred order using the online editor. Switch effects instantly or browse first and activate your selection when ready. Silver and black panel options let you match the module to your system.

Effects and Performance Features

• 200 onboard effects: arrange their order through the online editor.
• OLED display: shows the current effect's number, name and three parameters.
• Flexible effect switching: choose instant switching or seek-then-activate operation.
• Stereo input level control: adjust the incoming signal level.
• 10 storable presets: recall saved settings with indicator lines for each stored parameter.

Modulation and Sample-Rate Control

Route the internal LFO to the sample rate, parameters 1–3 or effect selection. The SRR input can also be routed to parameters 1–3 or effect selection, providing additional ways to animate your effects.

Manual sample-rate control includes a one-click return to the default position.

Updates and Display Settings

Update the module by playing a WAV file, using its level indicator to match the playback volume. Screensaver timing options include 1, 10, 30 and 60 minutes.

Format and Panel Options

• Format: Eurorack effects module
• Width: 14HP
• Panel options: silver and black

Compare FX Aid Versions

Explore the standard 4HP FX Aid for a compact option, the FX Aid XL with separate parameter CV inputs, or the FX Aid 1U for the alternative format.
