Name: Happy Nerding - Isolator v2
Brand: Happy Nerding
Price: 130.00 USD
Availability: InStock

Eurorack [3U]

Product form

Happy Nerding - Isolator v2

HP:

isolator is your 4 hp solution for galvanic isolation between its inputs and ¼ trs balanced outputs, interfacing your eurorack... Read more Read more

Description

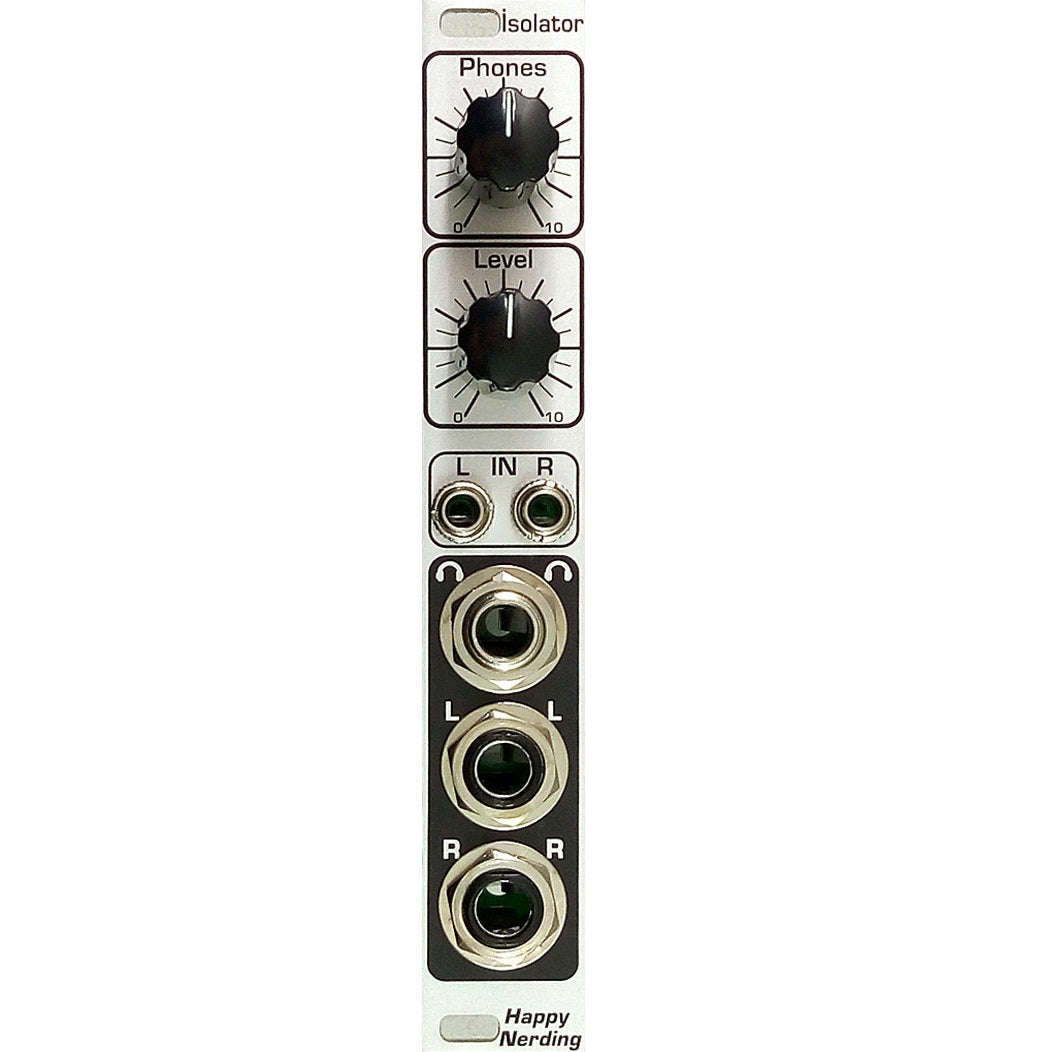

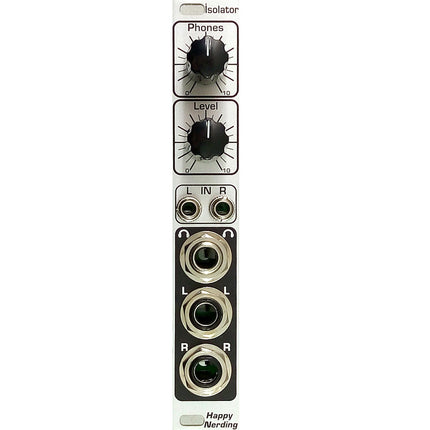

isolator is your 4 hp solution for galvanic isolation between its inputs and ¼ trs balanced outputs, interfacing your eurorack modular system without electric connection with the external equipment, which prevents possible ground loop issues.

if no signal is plugged to the right input, then the left input will be sent to both left and right outputs. "level" knob adjusts output level for left and right channels, phones knob sets the level for the headphones output.

if jumpers are installed (by default) the headphones output has the max gain. if the gain is too high for the particular headphones model - both jumpers should be removed.

specifications:
50 ma +12v
50 ma -12v
45 mm depth
4hp wide

Color

Silver

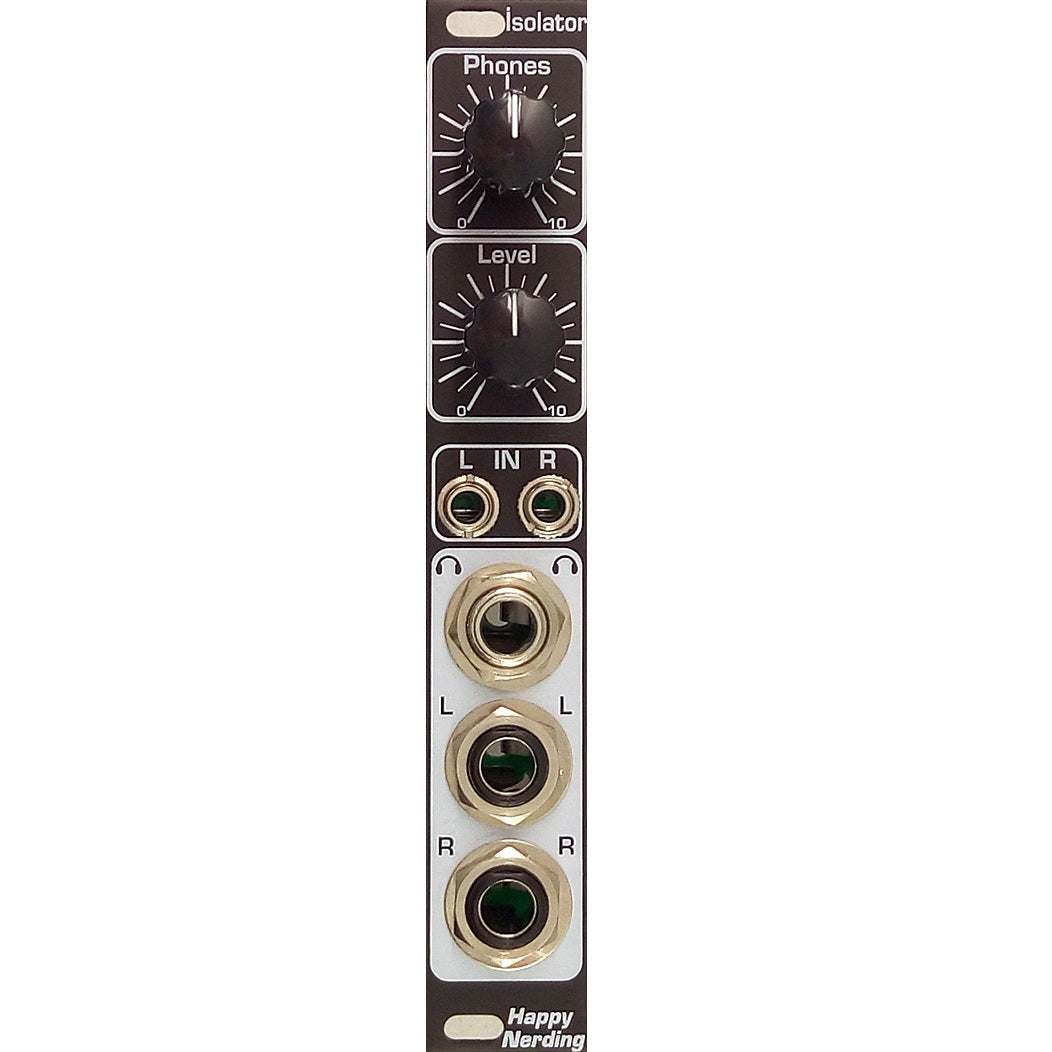

Black

$130.00
